Rs. 275,000

Water flow velocity meter for River, streams, open channels

DESCRIPTION

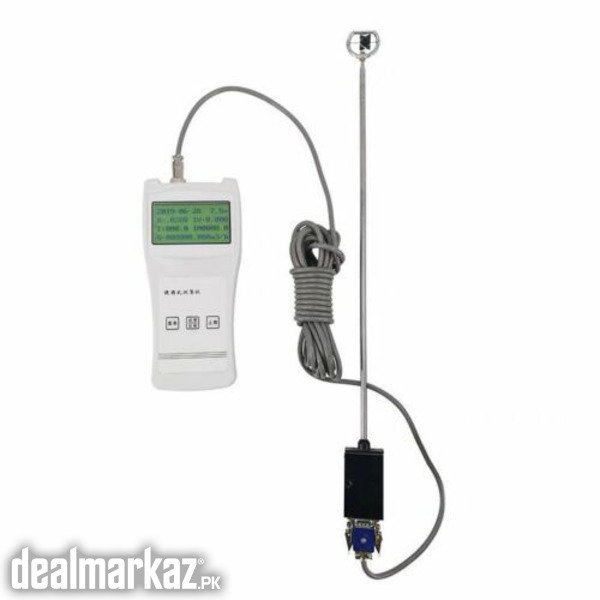

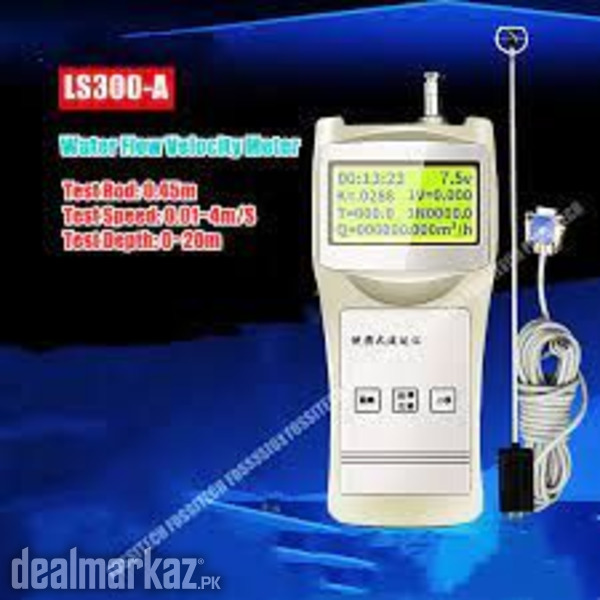

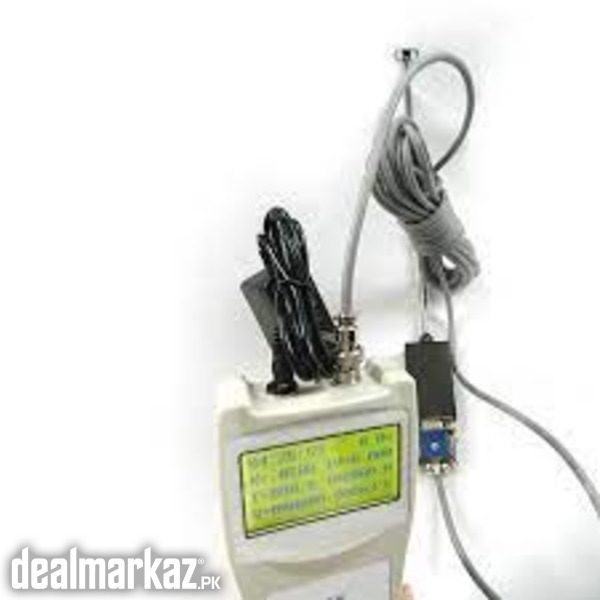

River Open Channels Flow Velocities Measuring Instrument Portable Slurry Type Flow Meter Range 0.01~4.0m/s Velocity Meter

Velocity measuring range: 1 ~ 400 cm/s. Sampling time: 1 ~ 99 seconds to choose;

Figure 1. Portable flow meter installation drawing

The equipment is simple in structure, convenient in light, power saving, complete functions, high degree of automation, stable and reliable, and meet the national standard of open channel flow measurement, high temperature propeller configuration 80 degrees, is now a new type of portable velocity measuring instrument in China.

Measuring range: the velocity of 0.01 ~ 4. Om/s (domestic start minimum flow velocity meter) specifies the current meter water survey

Working depth: < 20 m

Use: is suitable for the channel, river, reservoir, measure and display directly due to water flow velocity measuring point

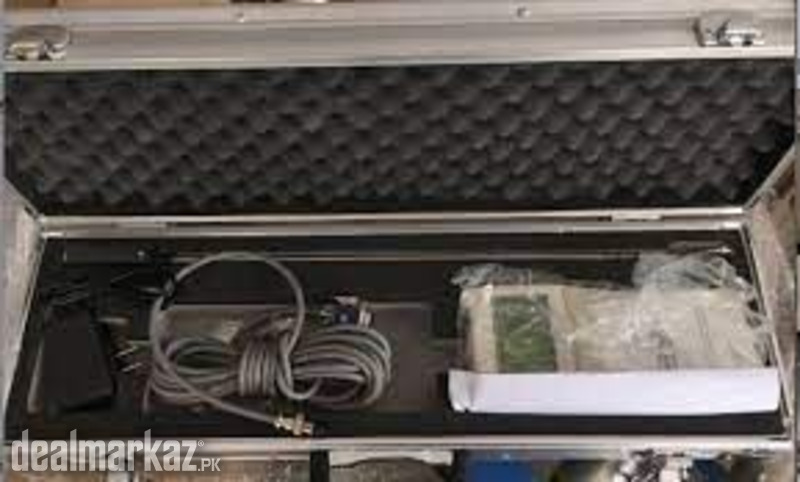

A full set of equipment: including current meter, display, and cable, do not need another purchase and form a complete set of equipment

Speed range: 0.01 to 4.00 m/s (to 5.00 m/s)
Measurement error: 1.5% or less

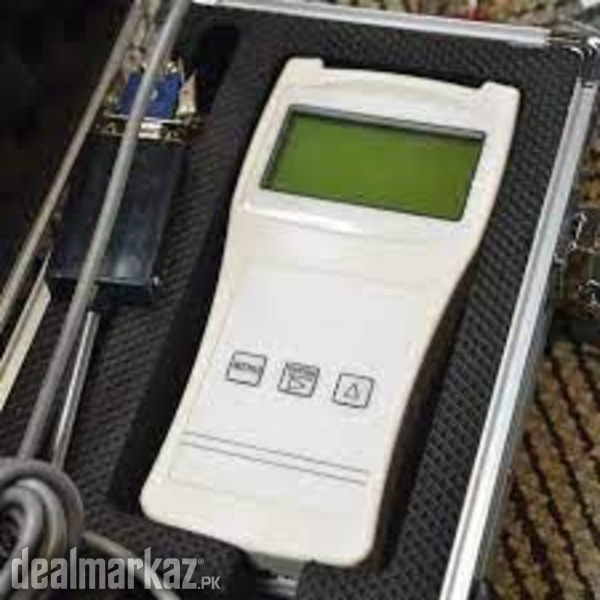

Display: 4 x 16 LCD display
Measurement method: rod position measurement
Temperature range: - 20C to 50C
Power supply: DC8.4 V lithium ion rechargeable batteries, can work continuously more than 40 hours after full.
2. Measuring principle:
The instrument based on design of principle of open channel flow velocity area method to measure the velocity can get traffic s. Q = V (S for sectional area)
