Contact for price

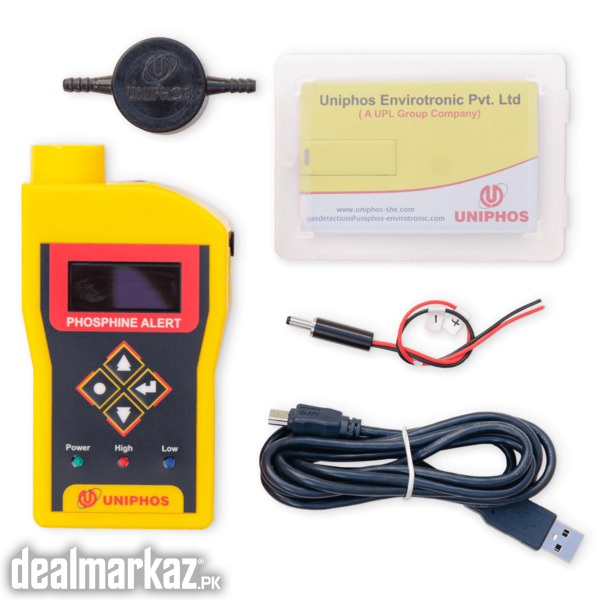

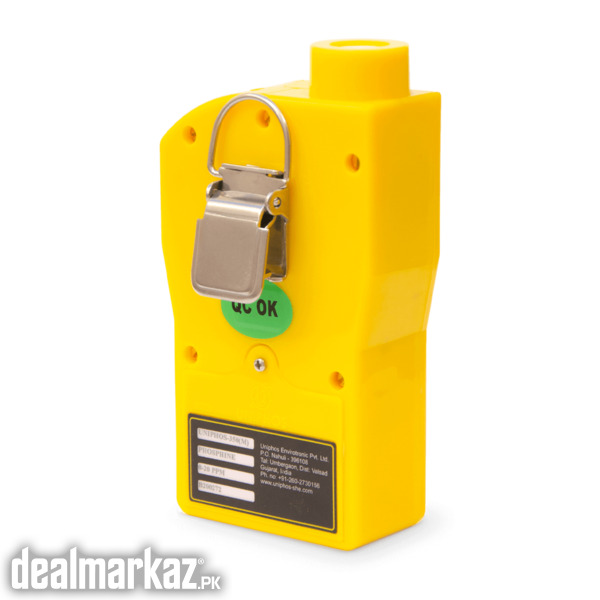

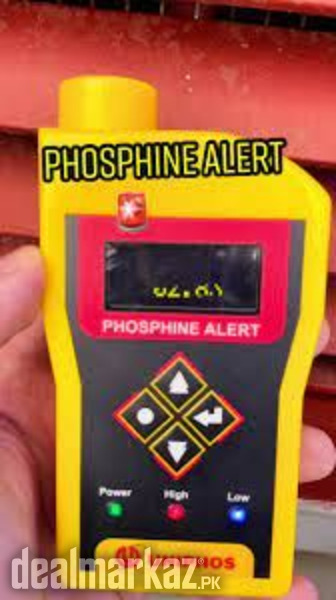

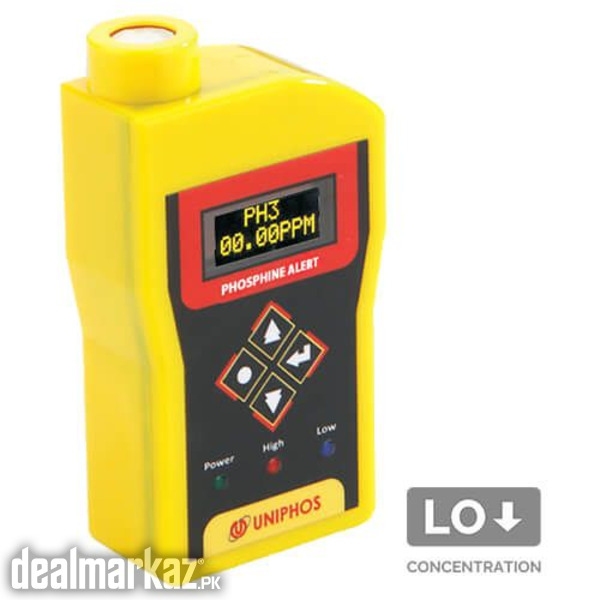

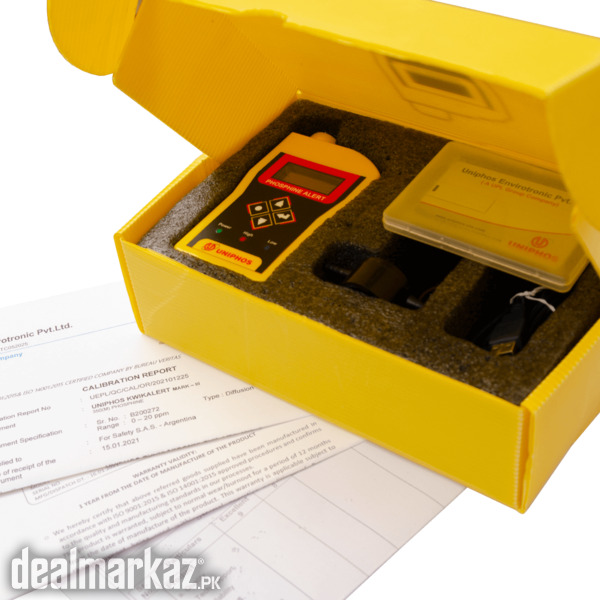

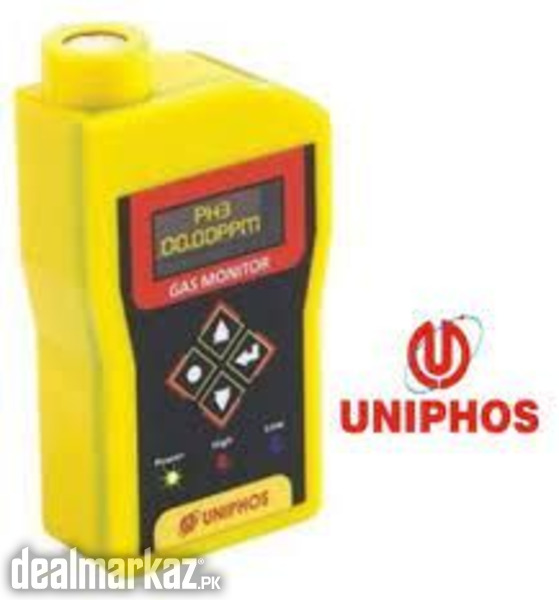

Uniphos Phosphine KwikAlert PH3 Personal Gas Monitor Leak checker

DESCRIPTION

The Uniphos KwikAlert is a compact single gas, diffusion based personal monitor designed to monitor the work environment for dangerous levels of Phosphine gas. Equipped with a bright and easy to read OLED display, the gas concentration is continuously displayed, and its user settable audio and visual alarms alert the user of dangerous levels of gas. With data logging available as standard, monitoring TWA and STEL limits is a breeze.

The Phosphine KwikAlert gas monitor can detect PH3 in the range of 0.01 to 20 ppm, making it an ideal tool to both check for leaks around the fumigation chamber, as well as monitor the environment for dangerous levels of PH3.

Application

TLV level monitoring around the fumigated space 
Leak detection from the fumigation chamber 

Features

Micro-controller-based technology with high contrast, easy to read OLED display 
Range: 0 – 20 ppm 
Resolution: 0.01 ppm 
Data logging capability with Gas conc., TWA conc., Date & Time information 
Audible / Visual alarm 
USB interface with PC

Specification

Gas: Phosphine
Range: 0-20 ppm
Resolution: 0.1 ppm
Sensors: Electrochemical Sensor
Accuracy: Inherently +/- 2% (but also depends on the calibration gas accuracy and calibration method)
Drift: Less than 2% of the signal per month at constant temperature and pressure.
Gas sampling: Diffusion
Alarms: User-Settable Lo Alarm comes with Visual Blue LED indication.
User-Settable Hi Alarm comes with 85Db Audio alarm and
Visual Red LED indication with optional vibrational alarm.
TWA and STEL alarms can be provided.
Data logging: As standard, with gas concentration, date & time
Power source: 7.4 V Li-ion rechargeable battery pack
Runtime: 7 – 8 hours when battery full charged.
Data Transfer/Print: USB (wired) communication from instrument to computer.
Function keys: 4-keys for basic operation/setting & calibration.
Operating temperature: -10° to 50° C
Display: 8×2 Alphanumeric OLED display
Instrument Enclosure: ABS Plastic
Ingress Protection: IP 65
Size: Height = 130 mm
Width = 70 mm
Depth = 35 mm
Weight: Approx. 300 grams
Certification: CIMFR & CCOE (PESO) approval: Ex ib IIA IIB T4
