Contact for price

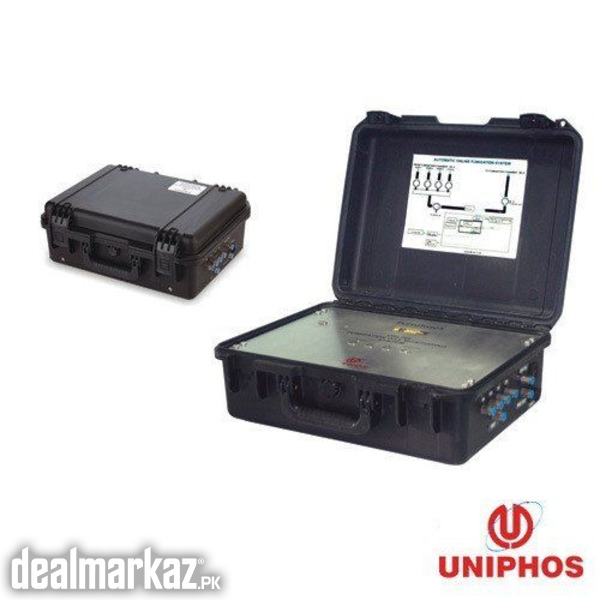

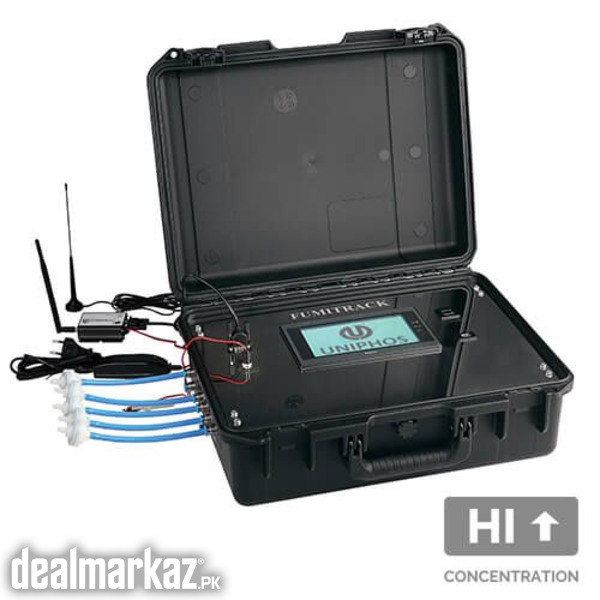

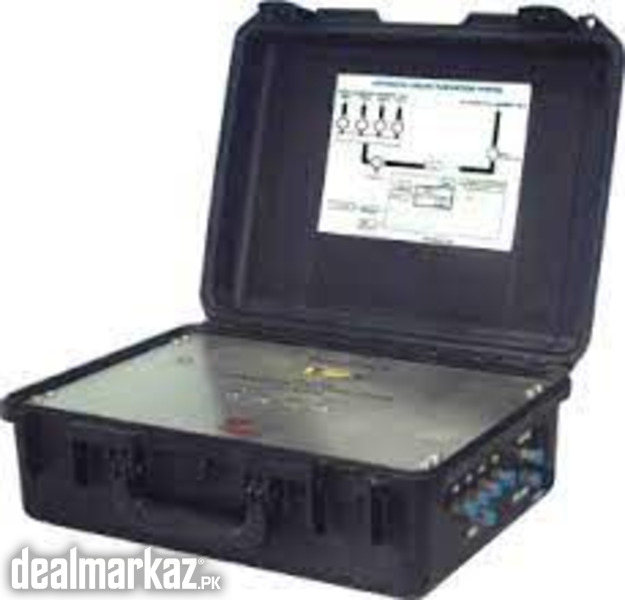

Uniphos Fumitrack Methyl Bromide (Mbr) 4 Zone Automatic Gas Monitor

DESCRIPTION

Uniphos 551PM Fumitrack 4-Zone Automatic gas Monitor with Expansion Port,MBr:0-200mg/L,Res:1mg/L

Application

Fully automatic multi-port gas monitor used for process control measurement

Features

Colour TFT touch-screen interface
Range: MBr 0-200 g/m3
Fully programmable menu – once programmed can run for several cycles of operation covering entire fumigation period, without any human intervention
Logging of gas concentration levels with information like Cycle No., Date, Time, Site & Location on a USB memory drive
Remote data upload to the cloud using GSM technology
Inbuilt sample draw pump – can draw sample from 100 meter
Housed in a tough Pelican Storm Case – weather and waterproof
Specification

Gas Name: MBr
Concentration range: 0 – 2000 ppm / 0- 200 mg/m3
Resolution: 1 ppm / 1 mg/m3
Response Time (T90): Typically, less than 30 seconds after Establishment of the gas concentration in the sensor hood.
Accuracy: Inherently ± 2% (depends on the accuracy of the calibrating gas & sampling system)
Operating Temperature: 0o to + 45oC, 32o to 113oF
Operating pressure Ambient: ± 10%
Gas Sampling: Sample Draw Type (with inbuilt pump).
Sampling Time: User settable
Purge Time: User settable
Display: State of art PLC & HMI based instrument
Data Logging Function: USB storage
Inbuilt Pump Flow rate: 800 – 1000 ml/min
Power Supply: 110 – 230 V AC/110 V AC, 50 60Hz Hz
Construction Material: Pelican Case

FumiTrack Expansion Module Specs

Gas Compatible: MBr
Gas Sampling: Sample draw type with 2 Litres/minute (Suction capacity from a distance of 300 feet)
No. of zones: 8 x inlet ports
Electronics: PLC BASED Fully automated system
Communication: RS485 (2 wire) Interface Proprietary Protocol
Power Supply: 110-240V AC, 50/60 Hz Inbuilt SMPS (+24V, +5V, -5V, GND)
Enclosure: Robust and weather proof Pelican Storm case
Operating Temperature Range: -10 to 50 °C
Operating Pressure: Ambient +/- 10%
Weight: Approx. 2 kg
Dimensions: 487 x 386 x 185 mm
