Contact for price

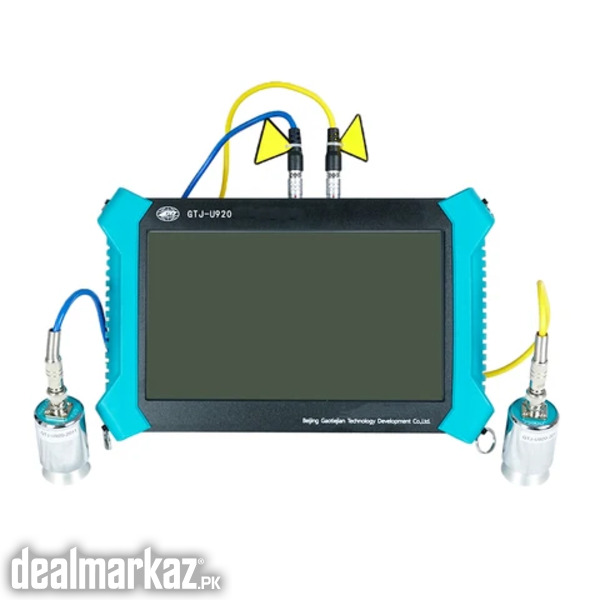

Ultrasonic Pulse Velocity Tester (UPV Measurements Meter)

DESCRIPTION

ultrasonic pulse velocity tester

Features

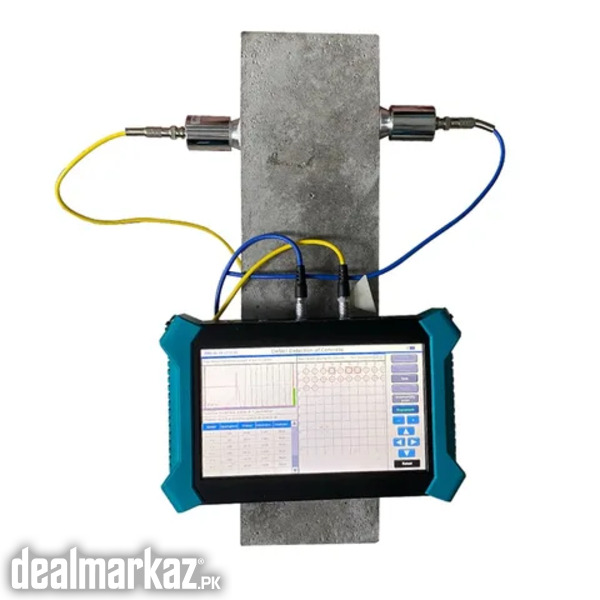

Structural Concrete Compressive Strength Test, pile testing, crack depth, crack width and defect detection, Diaphragm wall integrity testing, crack sounding and width measurement.Geological exploration, rock integrity, weathering evaluation test; mechanical properties of non-metallic materials such as rock mass and concrete.

Master control unit Built-in A9 industrial control motherboard
Display 10.1 inch, high brightness, TFT color LCD capacitive screen
Operational mode Touch screen
Storage mode Built-in Electronic Hard Disk (> 8GB) +Large Capacity U Disk
Data transmission mode Wireless Cloud Transport (Options)
Acquisition mode Single-channel manual point-by-point acquisition
Number of disposable profiles -
Channel Number 1 transmit + 1 receive
Trigger mode Signal triggering
Sampling period (μs) 0.05-409.6 Multistage Options
Acoustic Time Accuracy (μs) 0.05
Acoustic time range (μs) 1677700
Width measurement function range: 0 ~ 10mm;
accuracy: 0.01 mm;
Dynamic range (dB) 146
Bandwidth (kHz) 1~500
Receiving Sensitivity (UV) ≤10
Gain Accuracy (dB) 0.5
Emission Voltage (V) 65, 250, 500 and 1000
4-gears adjustable
communication interface USB, Bluetooth, Wifi
Working hours (h) ≥ 8
Power supply mode Built-in lithium battery
External 220V~16V AC/DC
work environment Temperature - 10 (ºC)~ + 40 (ºC)
Humidity (RH) < 90%

Specification
1. Integrated design, small size;
2. The new MOS image sensor is used to subvert the traditional signal acquisition method, and the data is accurate and reliable;
3. Dedicated color screen display, automatic record detection time and date;
4. Parameters such as angle, test surface, pumping, carbonization, etc. can be set on site;
5. Voice reading function, noisy environment can also be equipped with earphone monitoring;
6. Optional micro printer to print test results on site;
7. Ultra-low power design, continuous use of power supply time 8-10 hours;
8. Equipped with a high-speed USB data transfer port to transfer data to the computer;
9. The upper computer software saves the data in EXCEL format, and can directly generate the WORD report format. The later software processing is simple and convenient.
