Contact for price

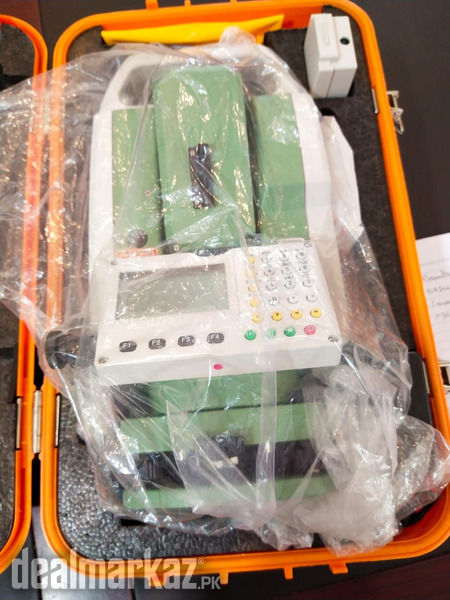

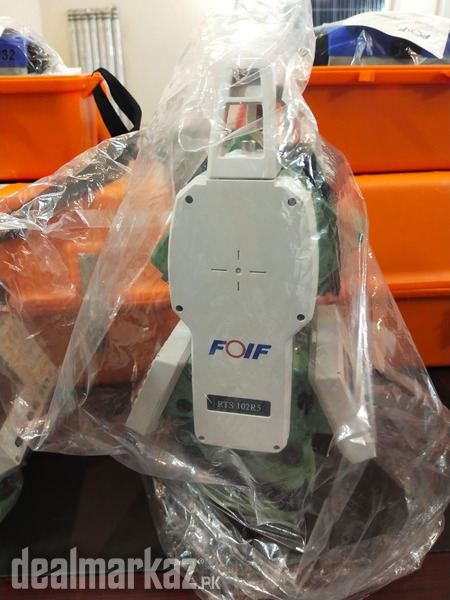

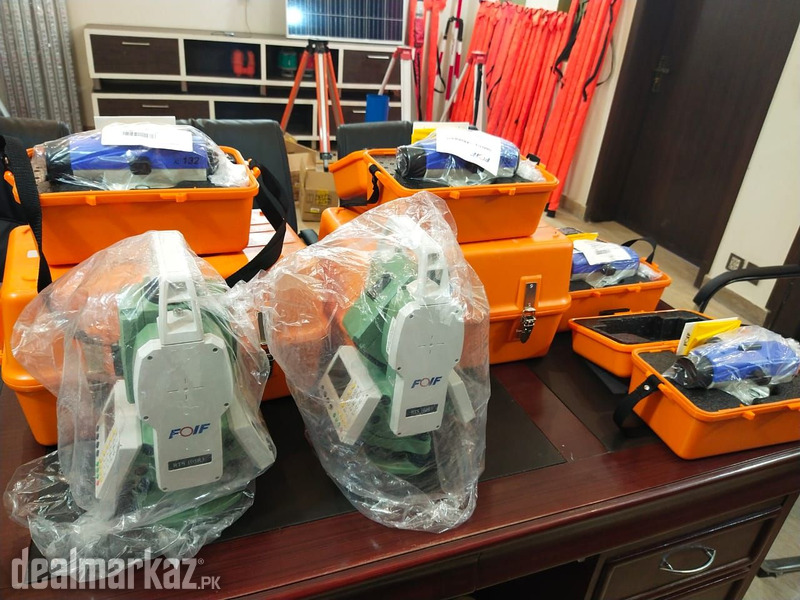

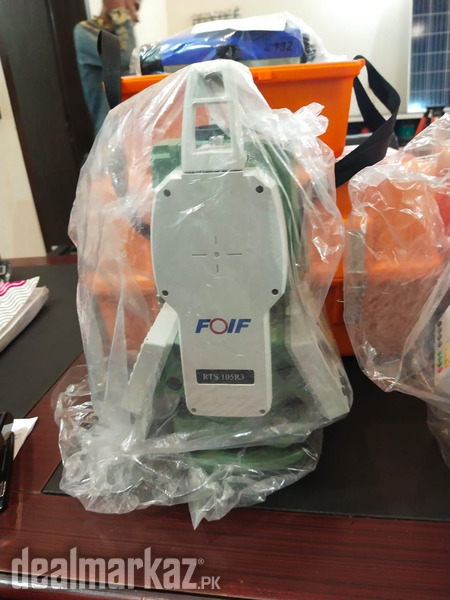

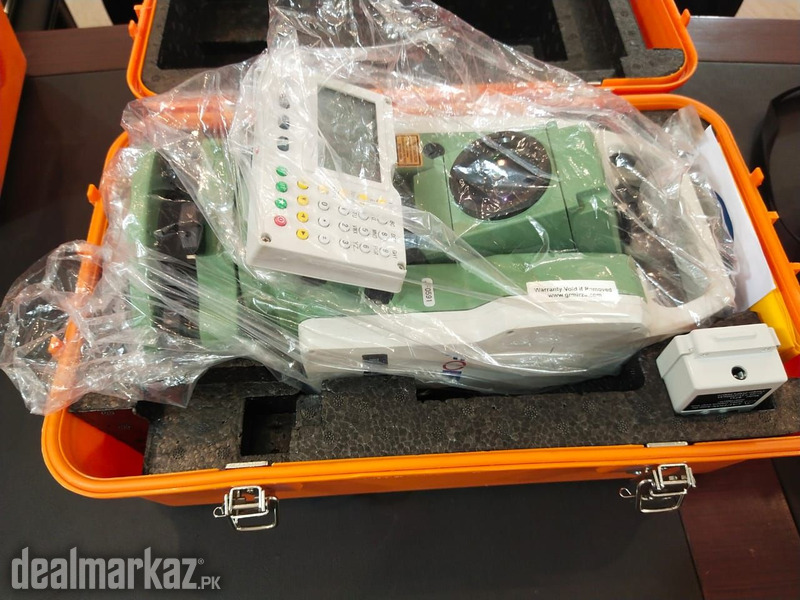

TOTAL STATION – 5 SECOND (R) – FOIF RTS 105R3

DESCRIPTION

Model RTS 105R3

-Telescope
-Length / Image 156mm
-Image Erect
-Objective Aperture ɸ 45mm
-Magnification 30x
-Field of View 1° 30’
-Shortest Focus Distance 1.0m
-Reticle illumination Yes- 9 Level

Angle Measurement

-Reading System Absolute Encoder
-Angle Unit 360° /400gon / 6400mil, selectable
-Display Resolution 1” / 5” / 10” (or 0.2 mgon / 1 mgon/ 2 mgon)
-Accuracy 5”

Distance measurement (R500)

-Laser Class (IEC60825-1) Prism Class 1
-Reflector less Class 3R
-Reflective Sheet / RP60 Class 3R
-Prism Class

Measuring Range (Good Condition)
-Reflector less R3 1 to 300m
-Reflector less R5 1 to 500m
-Reflective Sheet / RP60 1 to 800m
-Single Prism (Class 1) 1 to 3000m
-Single Prism (Class 3R) 1 to 5000m

Accuracy
-Prism 2mm+2ppm
-Reflective Sheet / RP60 3mm+2ppm
-Reflector less R3 3mm+2ppm
-Reflector less R5 3mm+2ppm
-Measuring Time Initial : 1.2s
-Prism Typ.0.4-1.5s
-Reflective Sheet / RP60 Typ. 1.5s
-Reflector less Typ.0.4-1.5s, max 20s
-Display Resolution (m / inch selectable) 0.2mm / 1 mm
-Temperature Input Range -40ºC to +60ºC
-Pressure Input Range 500hPa to 1500hPal (1ºC Steps)
-Prism Constant Correction -99.9mm to +99.9mm

Compensator
-Compensator Type Dual Axis
-Range 6’
-Setting Accuracy 1”

Level vial Sensitivity
-Plate Level Vial 30” / 2 mm
-Circular level Vial 8’ / 2mm

Laser Class Standards
-Accuracy ±1mm / 1.5mm
-Laser Class Class 2 / IEC60825-1
-Laser Spot Brightness Adjustable
-Laser wave Length 635nm

Power
-Battery 3400Mah Li-ion Rechargeable
-Output Voltage 7.4V DC
-Charger FDJ6-LI (100V / 24V)
-Charging Time Approx. 4 Hours
-Continuous Operation time Approx.26 Hours (At +20ºC)

Others
-Display Double LCD Display, 6 Lines x 20 Characters (96×160 Dots)

-CPU 32 Bit

-Memory: 120.000 points e.50 codes and support Internal Memory, SD Card (Max 16GB)

-Sensor: Built-in temperature & pressure sensor
-Keyboard: Alphanumeric Key Board, Both Side
-Weight :(include Batteries) 5.1kg
-Dimension :175x178x340mm
-Operating Temperature: -20°C to +50°C
-Storage Temperature :-40°C to +70°C
-Interface: USB / RS-232C / Bluetooth (optional)
-Data Transfer Software: FOIF Geomantic Official (FGO)
-Data Collector :F52G or PS2 36, Fully Rugged

Package Include: 1 x Total Station, 2 x Battery x 1 x Charger, 1 x tool kit, 1 x CD Software, 1 x Data Cable, 1 x Manual
