Rs. 245,000

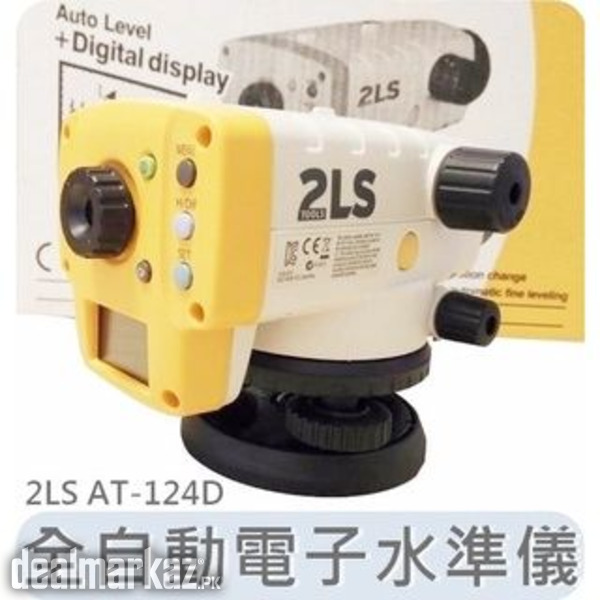

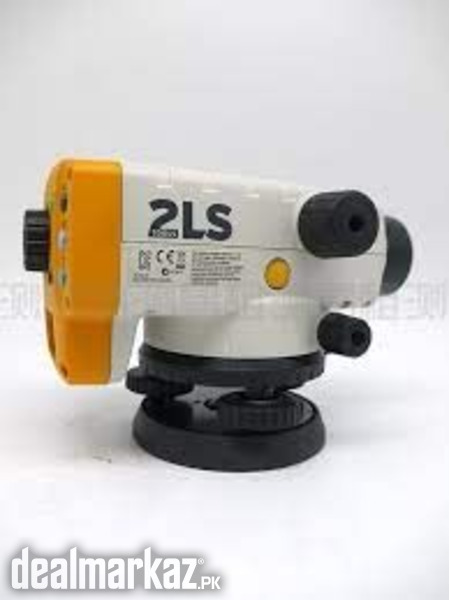

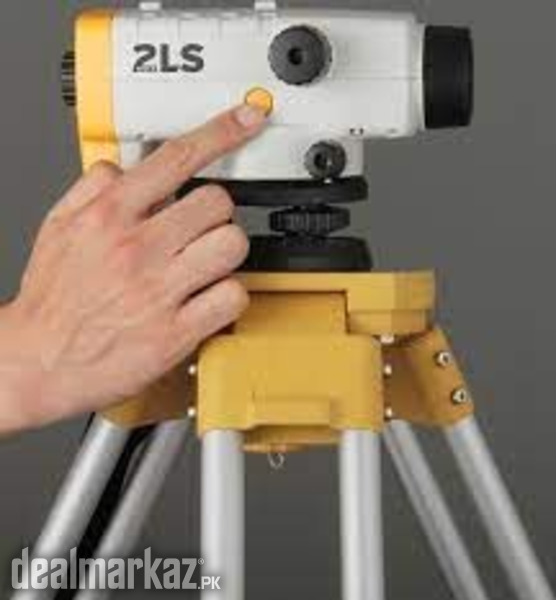

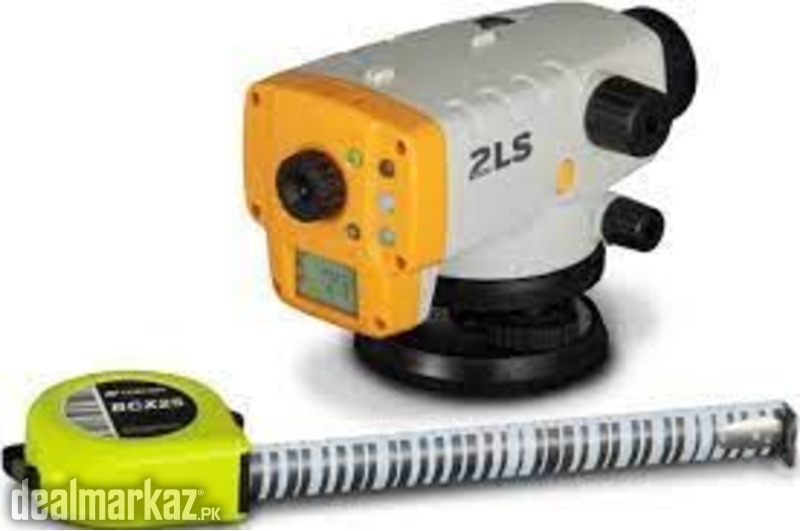

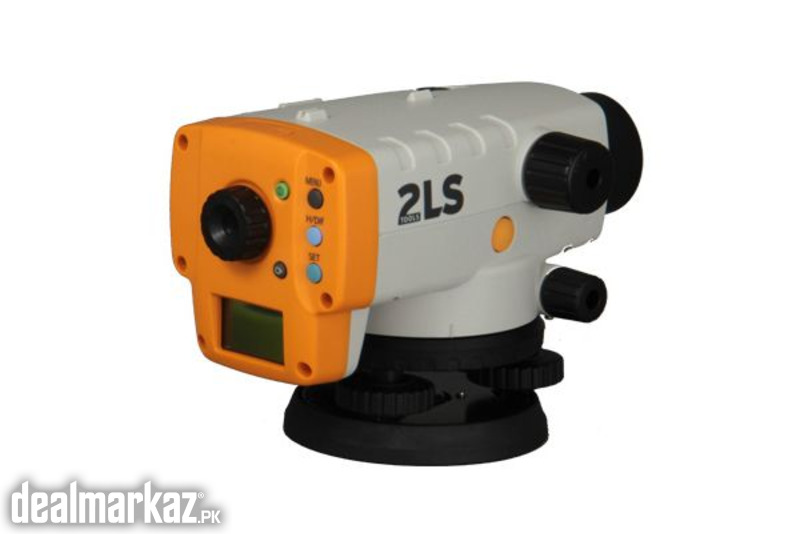

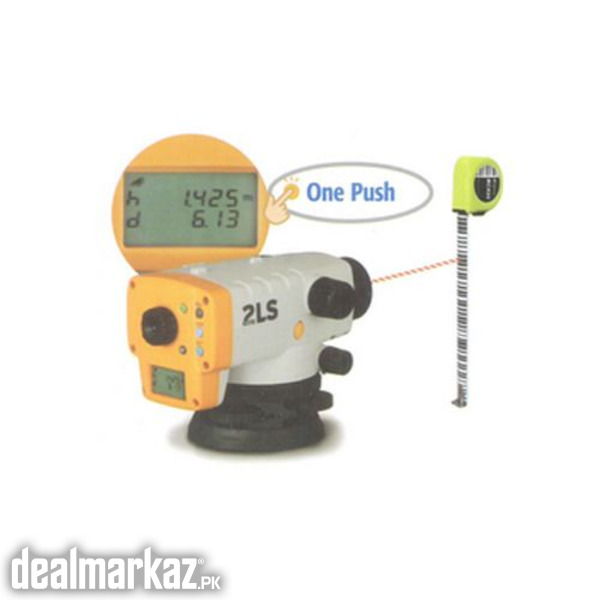

Topcon 2LS Auto Level + Digital Level

DESCRIPTION

"TOPCON" (Japan) Auto Level + Digital Digital Level Model AT-124D

Detail Specification:

Accuracy (height) ±2.0mm at 30m
Accuracy (distance) ±10mm @ 10m
Working range (Tape staff) 0.9 to 30m (2.9 to 98ft) Working Range (Aluminum Staff) 2.0 to 50m (6.5 to 164ft)
Measuring time <2sec
Magnification 24X
Self-compensation range ±12°

TELESCOPE Length 206mm

Magnification 24X

Objective aperture 30mm (1.18in.)

Resolving power 4.5"

Field of view 1°20'

Minimum focus 0.9m (2.9ft)

Image Erect

Stadia ratio 1:100

Stadia constant 100

COMPENSATOR

Type Pendulum compensator with magnetic damping system

Working range ±12'

HEIGHT MEASUREMENT

Accuracy

Electronic reading ±2.0mm at 30m

Optical reading ±2.0mm at 30m

Measuring range

Tape staff BCX 0.9 to 30m (2.9 to 98ft)

Aluminum staff BAS 2.0 to 50m (6.5 to 164ft)

Measuring time <2sec

Least count 0.001m, 0.01ft

Minimum light for measurement 20lx. @ staff surface

DISTANCE MEASUREMENT

Accuracy

Aluminum staff BAS

D<=10m ±10mm 1

0m
