DESCRIPTION

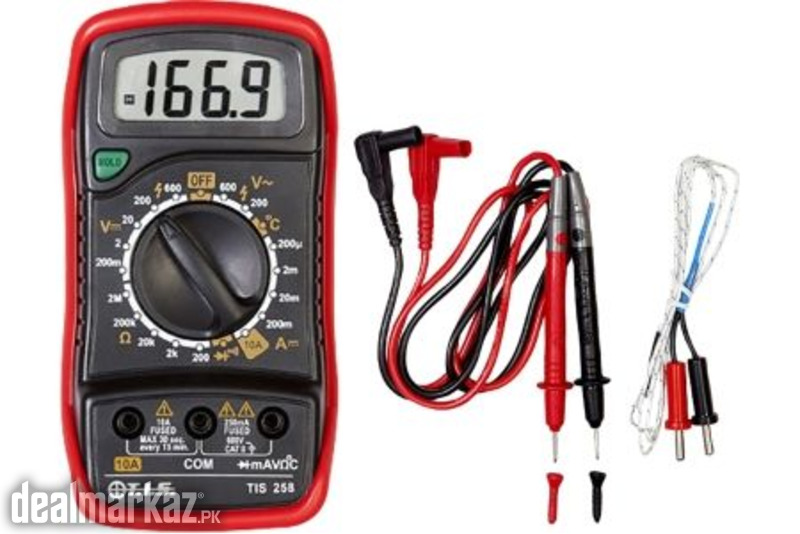

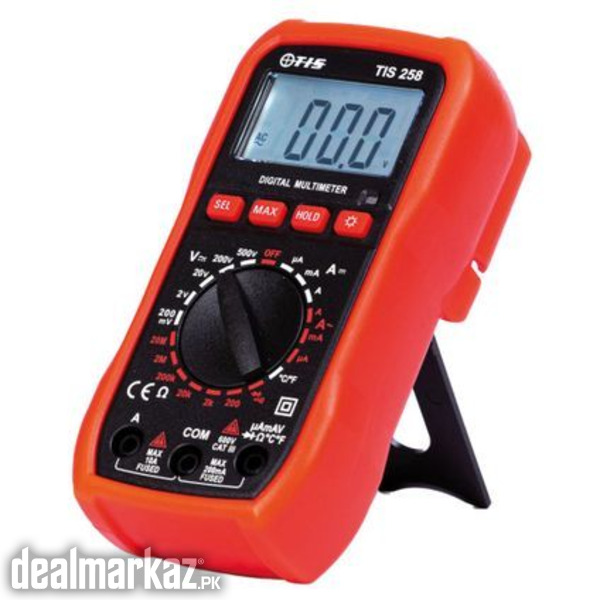

Robust, pocket sized multimeter with AC/DC voltage up to 600V & DC Current upto 10 Amp. The TIS 258 also has the benefit of Data Hold, Continuity Test & a Diode Test facility. It is also supplied with a temperature probe.

SPECIFICATIONS

Electrical

DC Voltage: 200mV / 2V / 20V / 200V ± (0.5%+3) 600V ± (0.8%+5)
AC Voltage: 200V / 600V ± (0.8% +3)
DC Current: 20μA / 200μA / 2mA / 20mA / 200mA ± (0.8%+2) 10A ± (1.2%+2)
Resistance: 200Ω / 2KΩ / 20KΩ / 200KΩ ± (0.8%+1) 2MΩ (±1.0%+2)
Temperature: (ºC): -20ºC - 1000ºC) ± (2.0%+2)
Features

Display Counts: 2000
Diode Test: 2.7V
Continuity Buzzer: <50Ω
Data Hold
General
Power Supply: 1 x 9V 6F22 / NEDA 1604 Battery
Size: 145mm x 76mm x 40mm
Weight: 202g
Safety Rating: CE CAT II 600V RoHS
