Contact for price

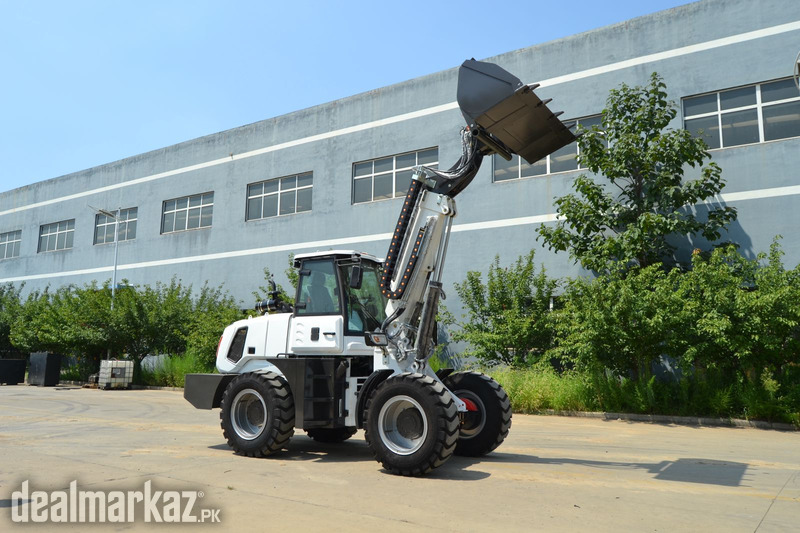

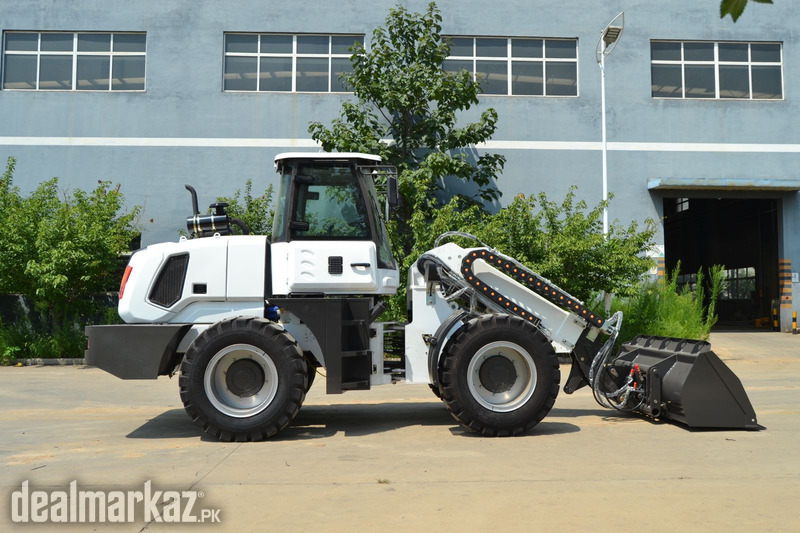

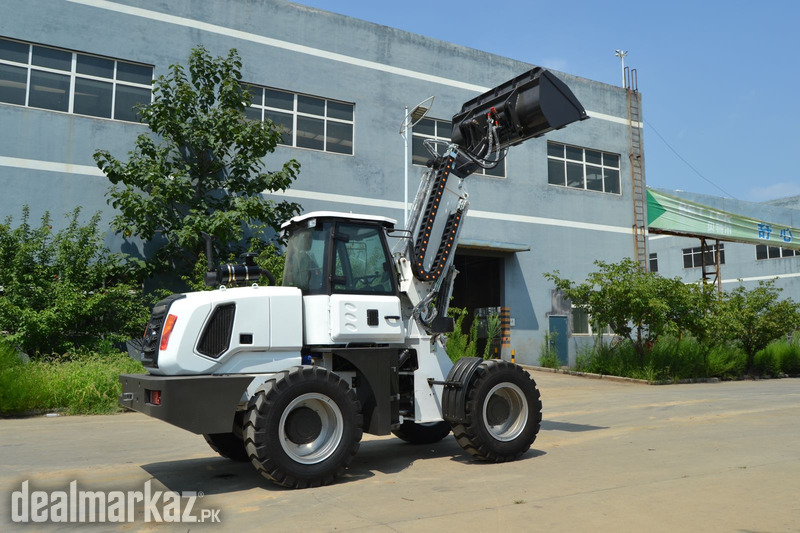

Telescopic Wheel Loader

DESCRIPTION

TL3500 Telescopic wheel loader

TL3500 with Weichai China 2 standard engine (92kw/6 cylinders)

Technology Parameters
1.0 Engine Details
(1) Model: weichai Engine
(2) Engine Type:In-line arrangement, water-cooled, four-cycle
diesel,turbocharged Engine
(3) Rated Power: 92 KW
(4) Rated Speed:2400 r/p.min (rpm)
(5)Optional Engine: same with offer sheet

2.0 Transmission System
Hydraulic converter + gearbox + drive shaft + hub reduction axles

3.0 Bucket
(1) Bucket Capacity: 1.5m³
(2) Bucket width: 2300 mm
(3) Bucket type: Heavy-duty bolt on teeth
(4) Rated Load: 3000 kg including attachment or bucket

4.0 Overall Dimensions
(1) Overall Length: 7000 mm
(2) Overall Height:2900 mm
(3) Overall Width: 2300 mm
(4) Max. lifting Height: 6500 mm
(5) Lifting to bucket hinge pin Height: 6000 mm

5.0 Operating Specifications
(1) Steering System: Articulated Frame with hydraulic power steering
(2) Min Turning Radius: 5900 mm
(3) Driving System: Hydraulic converter, four wheel drive
(4) European quick coupling system
(5) Joystick control

6.0 Brake System
(1) Service Brake: Safer air assist disc brake braking system
(2) Parking Brake: Hand operate （Disc brakes）

7.0 Tire
(1) Model:17.5-25

8.0 Wheelbase: 2430 mm

9.0 Track: 1700 mm

10.Operation weight : 7600 KG
