Rs. 750,000

SPY 785 Portable Pulse Holiday Detector for Pipeline Inspection.

DESCRIPTION

The Spy 785 Holiday Detector is used to detect pinholes and imperfections in pipe coatings, specifically 4-150 Mils for Film Coatings and yellow jacket sleeves. Used with a spring or brass brush this unit gives audio and visual signals when a hole in the pipes coating is detected.

For thicker coatings such as coal tars, extruded and tape coatings, the Model 785 has a range of infinite voltage settings from 1,000 to 15,000 volts. This wide range permits you to maintain a steady inspection rate on most types of coatings on most pipe sizes without changing detectors. Pulse voltage output only.

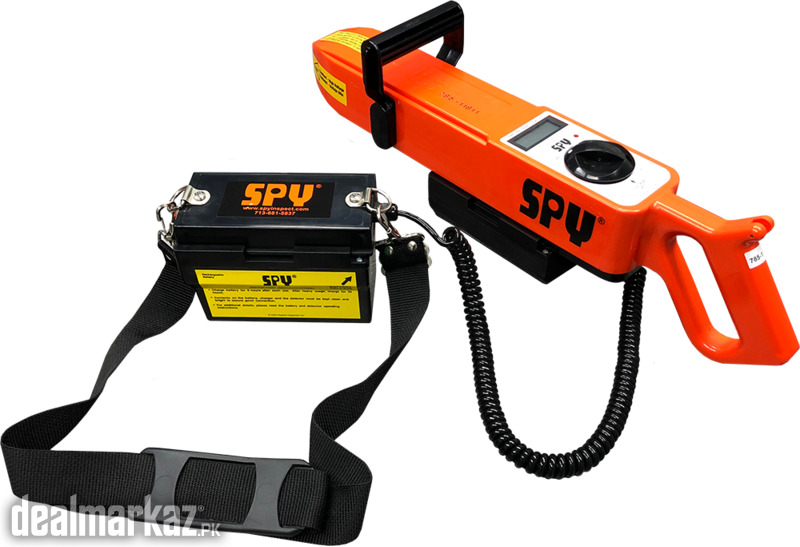

INCLUDED WITH KIT:

2 – 12V Rechargeable Batteries / 1 – 12V Charger / 1 – 50 FT Ground Cable / 1 – Shoulder Strap /

1 – Electrode Wand w/Spring Connector / 1 – Shoulder Strap Handle Clip / 1 – Brush Adaptor Kit /

1 – SPY Screwdriver / 1 – Shipping (Carrying) Case (28″ x 16″ x 8″) / 1 – Operating Instructions

TECHNICAL SPECS:
Voltage Type: Pulse
Voltage Range: 1-15 kV
Voltage Output Accuracy: ±5%
Coating Range (Min-Max): 4-150 mils
Pulse Repitition Rate: 28 Hz
Operating Temperature: –40°F to 148°F
Internal Volt Meter: YES-User Adjustable
Display Type: LCD
Holiday Indicator Type: Audible/Visual
Power Type: 12V Rechargeable Battery
Quick Release Battery*: YES
Battery charge time: Approx. 8 Hours
Unit Weight (w/ battery only): 7.45 lb
Unit Dimensions (w/o battery): 21.5” x 5” x 5.5” (L x W x H)
Unit Dimensions (w/ battery): 21.5” x 5” x 8” (L x W x H)
Domestic/International Standards Unit Complies With: CE, NACE SP0274-2011, NACE SP0490-2007

*Battery life is dependent upon selected voltage and load applied. Typical battery life 8 hours.
