Contact for price

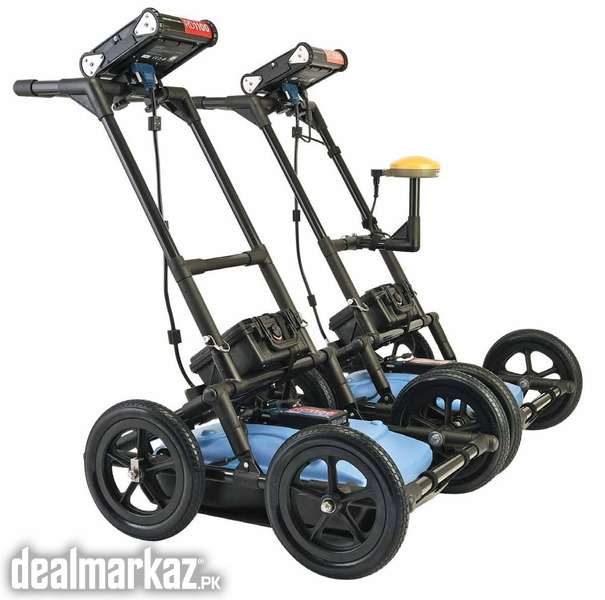

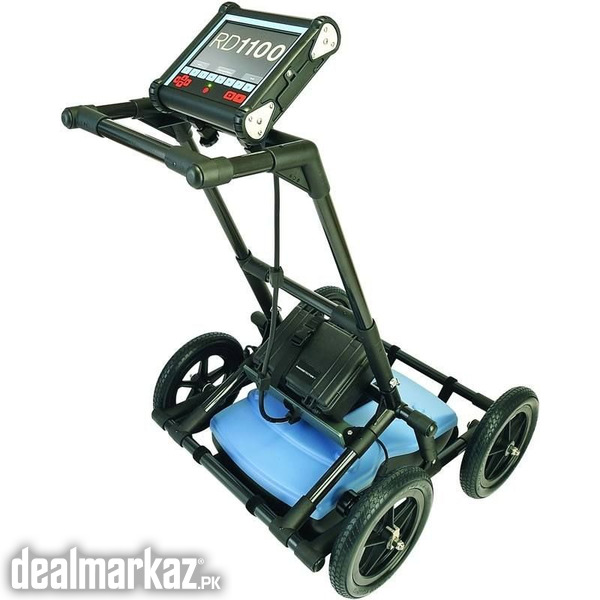

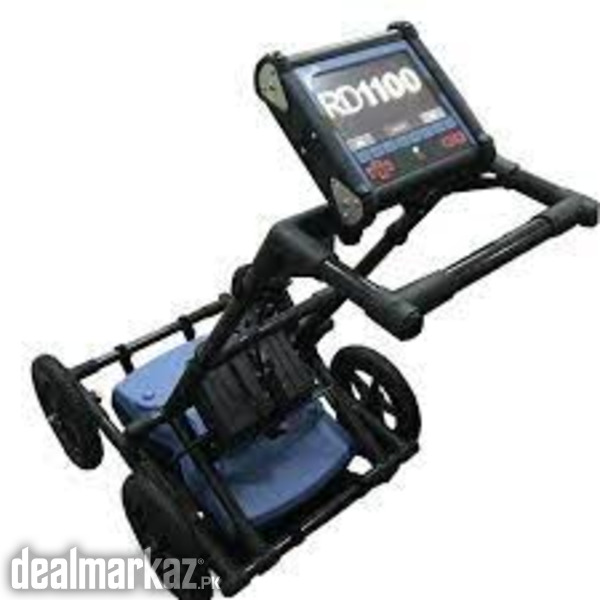

Radiodetection RD100 GPR Ground Penetrating Radar

DESCRIPTION

RADIODETECTION (Made in UK) GPR Ground Penetrating Radar Utility Locating Radar GPR Innovative Tool for finding buried utilities. You can trace and mark the position of all types of cable and pipe, including plastic and ceramic. Built in as standard is the ability to take
Screenshots which are saved to internal memory for immediate emailing via Wi-Fi or later export to USB memory stick. GPS positioning is captured for integration into Google Earth™.

Specification
Sensor frequency 250MHz Ultra Wide Band
Signal Enhancement DynaQ (optimizes data quality with cart
speed). Spatial filtering.
Data Analysis In field analysis
Touch Screen Display Size: 21cm (8") diagonal
Power Consumption: 1.25A at 12V
Battery: 12V, 9Ah Lead Acid
Spatial interval 5 cm (2")
Depth range Up to 8m (27') maximum
Display depth scale 1m-8m (3'-30')
Dimensions (H x W x D) 100 x 70 x 115cm (39.4 x 27.6 x 45.3")
Weight 22 kg (48lb)
Operating temperature
range
Display: -10° to +50°C (14°F to +122°F)
Sensor: -40°C to +50°C (-40°F to 122°F)
Environmental protection IP65
Compliance CE, FCC, ETSI, Industry Canada
