Contact for price

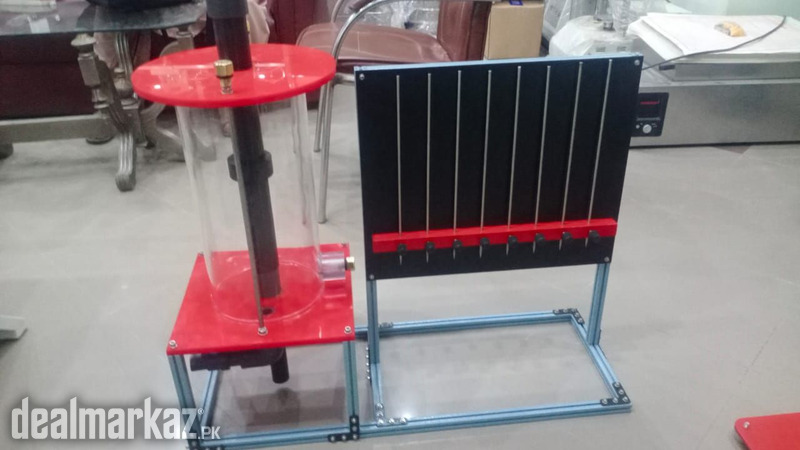

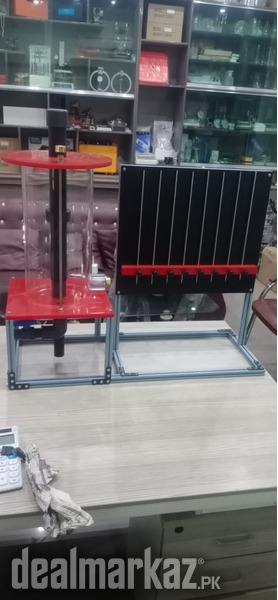

Orifice And Jet Flow Apparatus

DESCRIPTION

DESCRIPTION:

The module consists of a cylindrical methacrylate tank that enables to maintain a constant level and the Basic Hydraulic Feed System feeds that by the Hydraulics Bench.

An orifice is an opening made in the side of tank, having a closed perimeter, through which the fluid may be discharged. A mouthpiece is short tube fitted to a same size circular opening provided in a tank so that fluid may be discharged through it. Orifice and mouthpiece are used to measure the rate of flow of liquid. The apparatus is designed to measure the co-efficient of discharge of orifice & mouthpiece.

Following the position of some vertical needles placed in the annexed panel can draw the trajectory of the jet. These are adjusted by means of some command screws.

FEATURES:
•Cylindrical clear acrylic tank with orifice fitted in base
•Interchangeable orifices
•Determination of the orifice velocity coefficient.
•Obtaining of the orifice discharge coefficient in permanent regime.
•Obtaining of the orifice discharge coefficient in variable regime.
•Obtaining of the tank discharge time.
•Anodized aluminum/ MS powder coated structure.

SPECIFICATION:
•Orifices with diameters of 3.5 and 6 mm.
•Jet trajectory Probes: 8.
•Maximum height: 500 mm.
•Easy and quick coupling system built-in
