Rs. 15,000

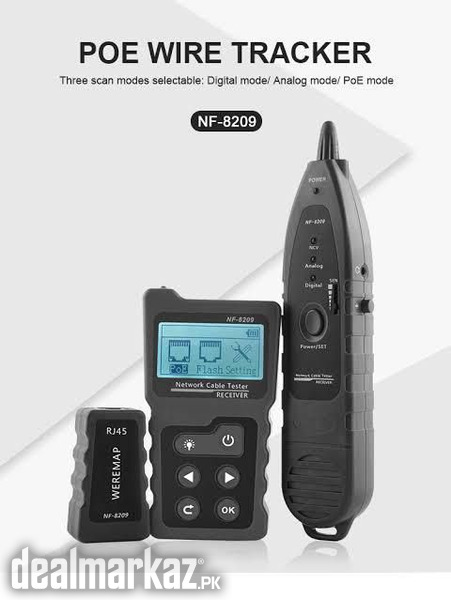

NF8209 Noyafa Network Cable Tester, Measure Length Lan Cable POE Wire

DESCRIPTION

NF8209 Noyafa
NOYAFA NF-8209 LCD Display Measure Length Lan Cable POE Wire Checker Cat5 Cat6 Lan Test Network Tool Scan Cable Wiremap Tester
Product description:

NF-8209 is a new generation to offer digital and analog signaling all in one network toner and probe. It has three modes for options to track cable like digital mode, analog mode and PoE mode. That means it’s equipped with the most powerful cable location technologies for any work environment. Also, it includes cable length measurement , cable faults testing, PoE testing, hub blink and NCV function, all these makes it a must-tool for cabling engineers.

Product Operation

1. CONT-- Test open, short, cross,ect for STP, UTP cable.

2. Length--measure length of lan cable, range is 2.5m~200m.

3. Scan--Analog/Digital/ PoE mode to locate lan cables.

4. PoE-- available for standard or non-standard PoE switch (5~60V), identify AT or AF standard of PSE type.

5. Flash--locate network port by the flashing port light on switch/ router.

Package Include:

Transmitter 1pc ( battery is not include )

Receiver 1pc

Remote 1pc

Earphone 1pc

Cable adaptors 1 set

Carry bag 1pc

User manual 1pc

Quality certificate 1pc

Main features

1. Two scan modes selectable: AC filter & Non AC filter

2. Detect AC voltage presence (50V-1000V).

3. Test physical status for STP, UTP lan cable.

4. Measure cable length accurately , the range is 200m.

5. Hub blink for locating network port by the flashing port light on Hub / Switch. Available to 10M/100M/1000M Hub/ switch.

6. PoE testing : identify which pins are providing power and detect how much voltage, identify which the type of PSE (at/af standard)

Specification

Transmitter Wiremap Cable type CAT5、CAT6 (STP & UTP)
Test with switch directly Yes
Max range 600m
Length Cable type CAT5、CAT6 (STP & UTP)
Test range 2~200m
Accuracy ±1.6m
Breakage location Yes
Scan Cable type CAT5、CAT6 (STP & UTP)
Max. signal voltage 8Vp-p
Frequency 130KHz
AC filter Yes
Max range 600m
POE Test range DC 5~60V standard / non-standard PoE switch
Voltage display Yes
PSE type IEEE 802.3af/at
LCD display 128*64 Dot-matrix with backlight
Power supply AAA*3 (Not included)
Low battary warning 2.7V
Auto-off time 15min、30min、60min、OFF
Voltage protection DC48V 5mA
Max working current <150mA
Receiver Sentivity adjustable Yes
AC Voltage detecting Yes
Lamp Yes
Battary type 9V*1 (Not included)
Low battary warning 6± 0.5V
Max working current <100mA
Remote Wiremap Port RJ45
Voltage protection DC48V 5mA
