Contact for price

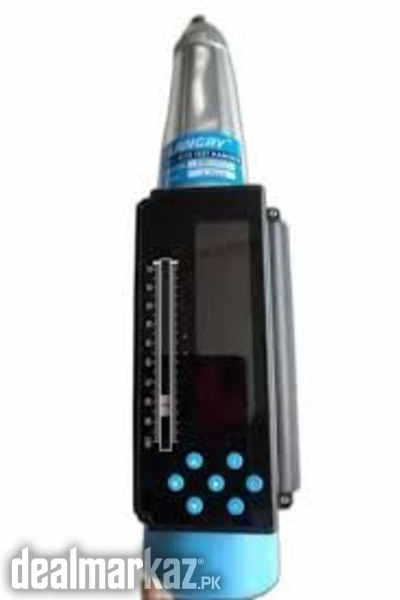

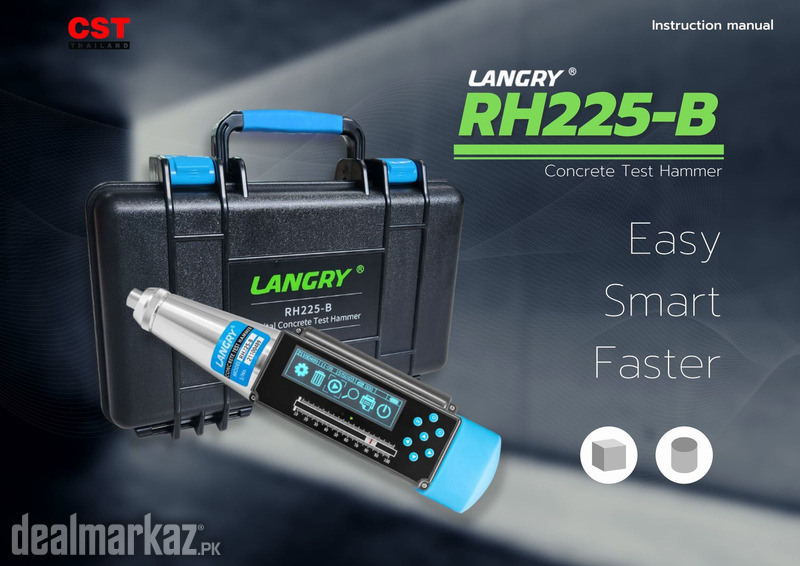

LANGRY RH-225B Digital Concrete Schmidt Test Hammer

DESCRIPTION

Digital Concrete Schmidt Test Hammer

Used for testing the compressive strength of ordinary concrete in the range of

50 ~ 90Mpa in structural engineering

Technical parameters

Pointer length: 20.0 ± 0. 2mm

Friction of pointer: 0.65 ± 0. 15N

Spherical radius of bouncing rod: 18±1.0mm

Elastic tension spring stiffness: 1100 ± 40. 0N/m

bounce hammer unhook position: Scale line "100" at the score line

Operating length of elastic tension spring: 86±0.5mm

Standard impact energy:5.5 J

LCD display:2.8" OLED 256*64

Power supply: 1600 mA 3.7 V lithium battery

Technical advantages:

The modular design of mechanical rebound tester and electronic warehouse is convenient for quick

assembly and replacement of fatigue or near-scrapping mechanical rebound tester.

Display, voice, Bluetooth and instruction control are highly integrated, and the design of dustproof

structure is optimized, which greatly improves the stability of the system.

Computer data processing software presented with the product. After the field sampling data is

completed, it is connected to the computer through USB port to upload the sampling data.

After the sampling is completed, the original rebound value, the strength value of measuring area

and the comprehensive evaluation of the whole component can be viewed immediately.

The online upload can be achieved with the mobile APK software.

Portable Bluetooth printer can be used for data printing in the sampling site, which is most suitable

for field supervision and engineering consultation.

High precision contactless photo coupling and grating sensor with independent intellectual property

rights can fully meet the accuracy of detection data.
