KM-15 Automatic double layer plant for colour pavers and Tuff Tiles

DESCRIPTION

Automatic KM-15 Double Trolley Concrete Machinery;

Model KM-15 Automatic Hollow Blocks, Paver Tiles, Tuff Tiles, Bricks, & concrete Solid Blocks Making Machine.
Concrete is a building material composed of cement, sand, gravel or crushed stone (also called aggregate), and water. When mixed together, these ingredients form a solid, durable material that is commonly used in construction for foundations, walls, floors, and other structural elements.

Concrete has several advantages as a building material, including its strength, durability, and ability to be molded into a variety of shapes and sizes. It is also fire-resistant, has good thermal mass, and is relatively inexpensive compared to other building materials.

Concrete is typically mixed on-site using a concrete mixer or delivered to the site as ready-mixed concrete. It can be poured into formwork or molds and left to cure and harden into a solid mass. There are also various types of specialized concrete, such as precast concrete, which is cast in a factory and transported to

KM-15 Double Layer is a large concrete block machine which can give production of concrete rectangle tile, hollow block & solid blocks, paver’s stone, and other concrete materials for construction of roads and building.

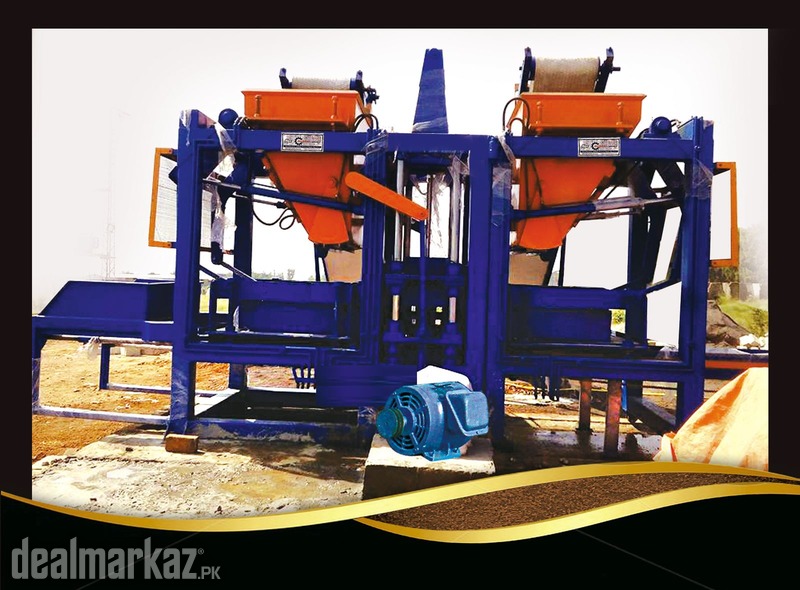

The machine consists of two parts: the main machine with a primary filling bucket for aggregates raw-material of concrete, sand, and the crushed mix, however, another one is a color mix machine with another filling bucket for fine surface layer on top of the paver tiles or solid blocks. With a color mix machine, a variety of products with a beautiful colored face layer can be produced.

Machine Mainly Included;
Two hopper system: (One For Aggregate Concrete Raw-Material & Other for topping color)

Two Buckets Trolley (One For Aggregate Concrete Raw-Material & Other for topping color)

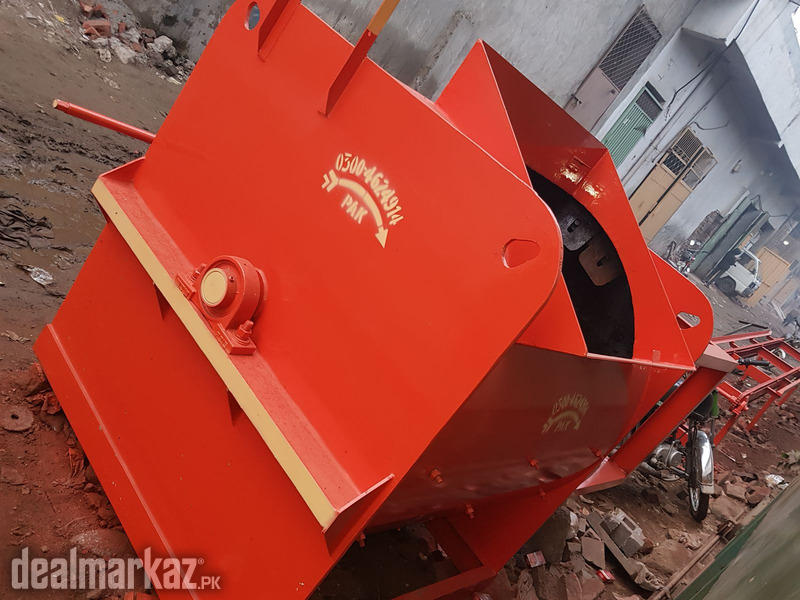

Mixer machine with motor and gears 15hp for Aggregate Concrete Raw-Material mixing.

Mixer Machine with motor & gear 7.5hp for color mixing.

Two Vibrator Motors 15HP with table & stands to vibrator the mold for strength.

Two Conveyor Belts 2HP (One For Aggregate Concrete Raw-Material & Other for topping color)

One Electric panel with variable controls.

Chain conveyor 20 feet in length for auto pallets with finished product output.

Hydraulic unit with tank and motor gear of 20hp. ( without hydraulic oil)

Stripping synchronization by means of four pillars (compaction part, mould)

Hydraulic Pressure adjustment valve for compaction.


Title: High-Quality Concrete Blocks Making Plant by KM Mughal - Unleash Your Construction Potential!

Description:
Are you in the construction business and looking to enhance your production of high-quality concrete blocks? Look no further! KM Mughal presents a state-of-the-art Concrete Blocks Making Plant that will revolutionize your construction projects.

At KM Mughal, we understand the importance of superior construction materials. Our Concrete Blocks Making Plant is designed to deliver unmatched efficiency, durability, and precision. Whether you are a small-scale contractor or a large construction company, our plant is tailored to meet your specific needs.

Key Features of KM Mughal's Concrete Blocks Making Plant:
1. Advanced Technology: Our plant incorporates the latest technological advancements, ensuring optimal performance and maximum productivity. Say goodbye to manual labor and welcome automated processes that save time and increase output.

2. Customizable Production: Every construction project demands different types and sizes of concrete blocks. With our plant, you have the flexibility to produce a wide range of blocks, including hollow, solid, interlocking, and more. Customize your production according to project requirements effortlessly.
