Hydrostatic pressure apparatus / Center of Pressure Apparatus

DESCRIPTION

LUCKY (Made in Pakistan) Center of pressure apparatus / Hydrostatic pressure apparatus

GENERAL DESCRIPTION

This equipment allows the moment caused by a fluid thrust on a wholly or partially submerged plane surface to be measured directly.

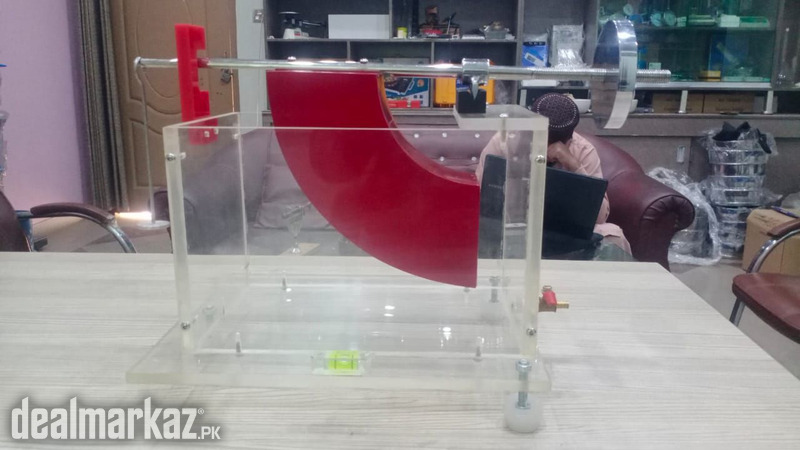

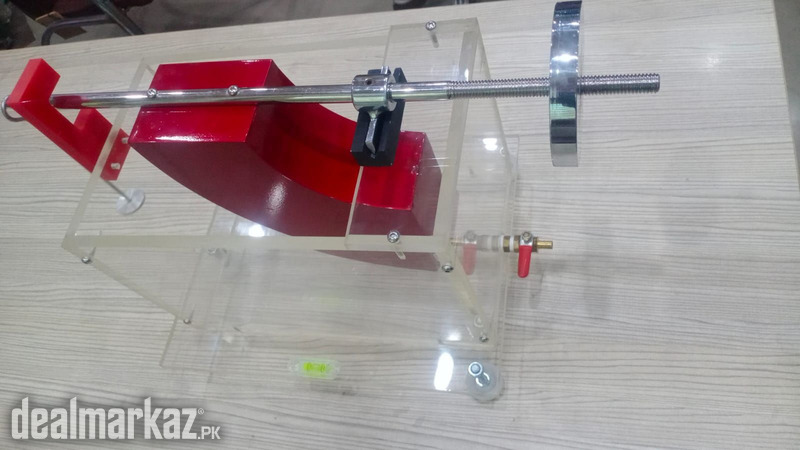

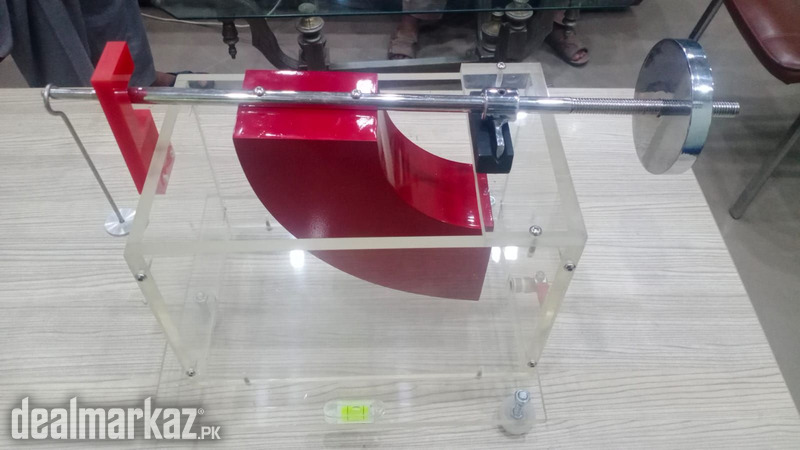

A PVC quadrant is mounted on a balance arm pivoted on knife edges which coincide with the quadrant center. When the quadrant immerses in water, there are hydrostatic forces. The balance arm has an adjustable counter balance and weights with a hanger. The quadrant is mounted on top of a clear acrylic tank which allows water to be admitted and drained to a required level by a valve. The tank rests on adjustable footings and a bull’s eye level is provided.

Specification
Water tank
Inclination angle: 0~90o
Content: 1.8 L
Quadrant inner radius: 100 mm
Quadrant outer radius: 200 mm
Effective area of force: 75x100 mm
Lever arm
Max. Length: 0~250 mm
Weights
Balancing weight: 250 g
Sliding weight: 250 g
