Contact for price

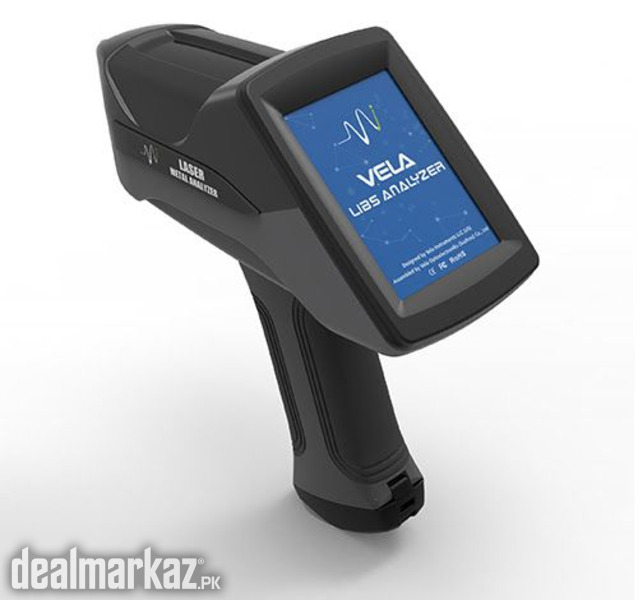

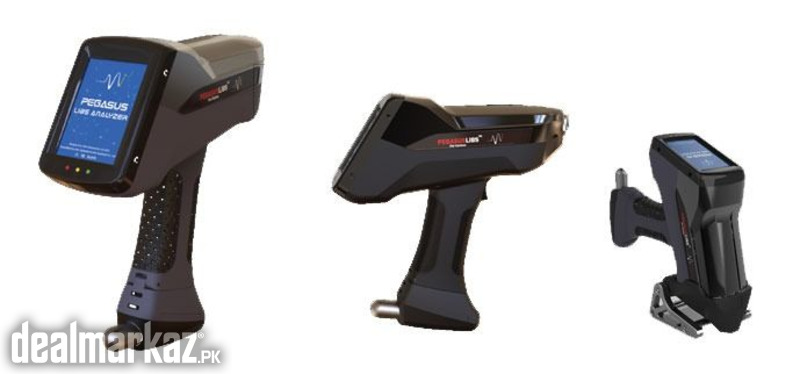

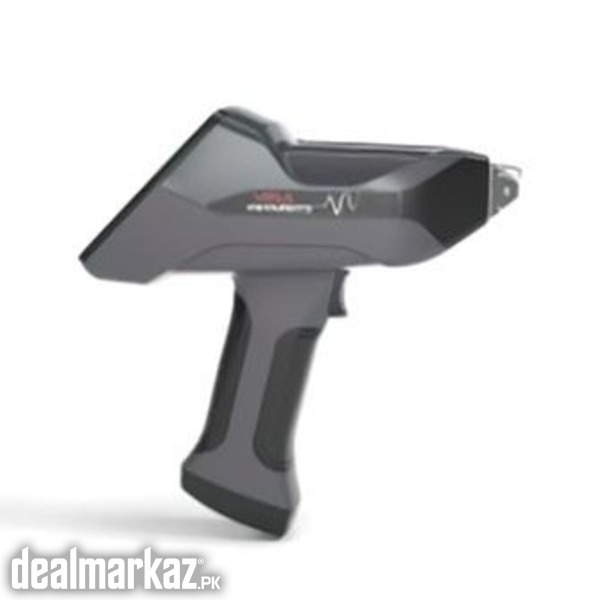

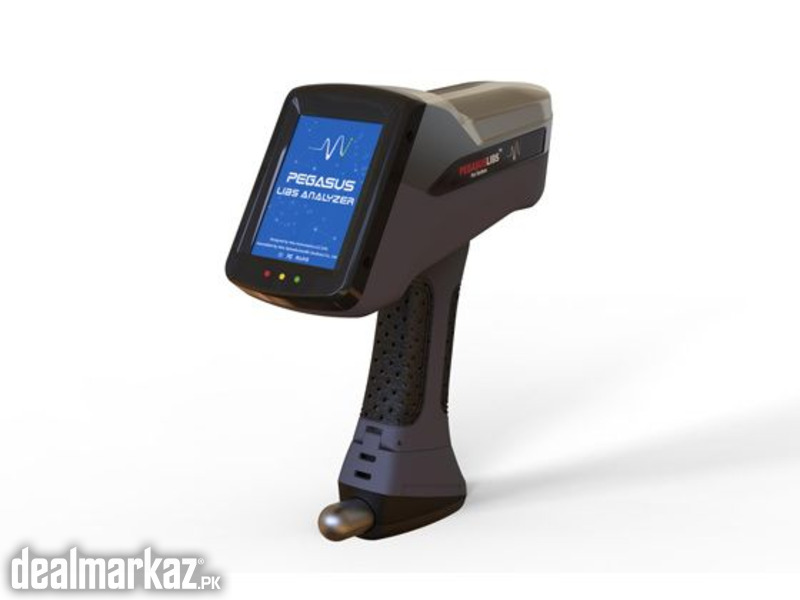

Handheld LIBS Lithium Analyzer

DESCRIPTION

Laser Induced Breakdown Spectroscopy (LIBS) is an atomic emission spectrometer.
It uses a high-energy focused pulsed laser beam to excite the sample surface, and analyzes the generated atomic spectrum to obtain the corresponding element composition and content through algorithm analysis. It is a rapid qualitative and quantitative industrial analysis technology.
LIBS technology is hailed as the "star of future chemical analysis" because it does not require complicated sample preparation, is almost non-destructive, fast and safe, especially for the detection of light elements such as carbon, lithium and silicon.

technology DPSS Passive Q-switech Lasers
Element Capability: Li
internal memory 16Gb standard
Protection level IP54
screen 4.0-inch resistive touch screen, 320*480 pixels
Bluetooth Bluetooth 4.1, Bluetooth low energy
CCD CCD macro camera
WIFI IEEE 802.11b/g/n 2.4/5GHz
Laser parameters Class 3B, 1064nm, passive Q-switched solid-state laser
Battery Lithium battery 14.8V, 3250mAh, 43Wh
Alloy Base: Lithium Ore
Library: UNS Based, highly customizable

sample form Blocks, sheets, foils (~0.1mm), turned parts
Spectral wavelength < 0.1nm resolution, 180-255nm spectral range
Argon Purity: 99.99% or more
temperature range 0-40 degrees Celsius, recommended working temperature 5-35 degrees Celsius
