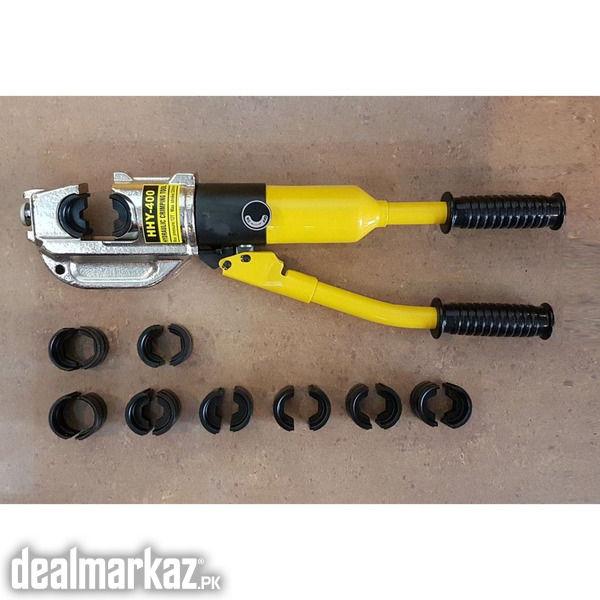

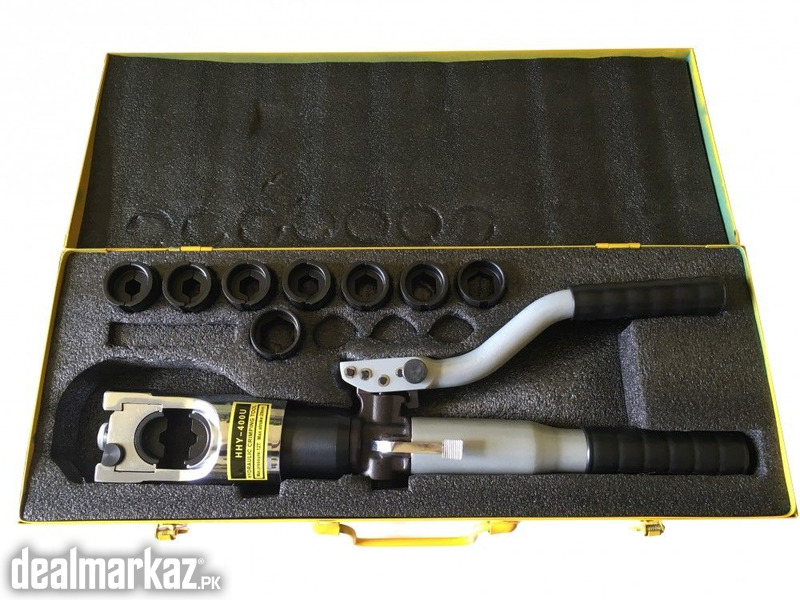

Hand Operated Hydraulic Crimping Tool, Model HHY400U

DESCRIPTION

Tlp Hydraulic Tools

(Hand Operated Hydraulic Crimping Tool, Model HHY400U)

Aluminum pump lever and housing result in low weight Built-in safety valve

A) H-head for deep groove applications.

B) Large crimping area up to 400mm².

C) Light weight due to high quality aluminum housing.

D) Thanks to the automatic retraction function, poor crimps are avoided, more safety and shorter intervals between crimping operations.

E) Manual release in case of need.

F)The rotatable head permits to work in tight locations.

G) Faster operation with less force thanks to the 2-stage hydraulic system.

SPECIFICATION:

Model: HHY-400U

Max. pressure: 12 T

Stroke: 20 mm

Size of standard dies: 50, 70, 95, 120, 150, 185, 240, 300, 400 mm2

Crimp pattern: Hexagonal

Weight: 9 kg

Shipping volume: 61x21x11 cm
