Rs. 2,500,000

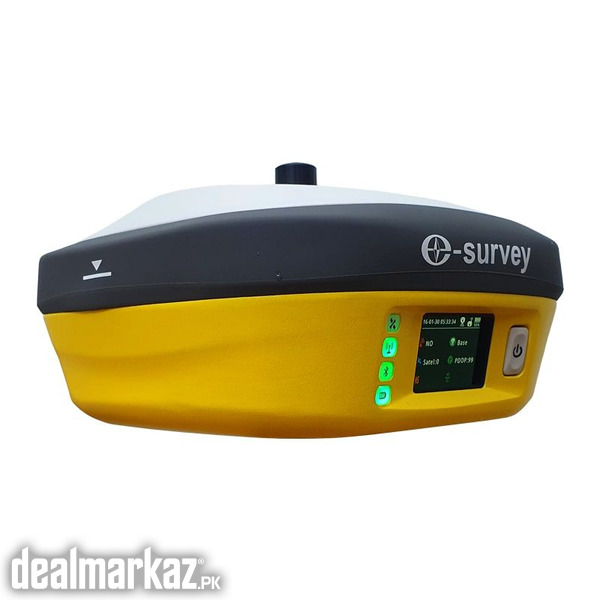

eSurvey E800 GNSS RTK Receiver

DESCRIPTION

eSurvey E800 is a high-performance product by eSurvey GNSS. The durable IP67 design makes it possible to work in various of environments. Multi constellation and frequency tracking always gives a Fixed solution for your job. The colorful touch screen is convenient for quick configurations.

Applications:

Mapping
Land Survey
Topography and As-built
Landfill
Hydrographic
Agriculture
Sensor
UAV Base Station

eSurvey E800 Specifications

General
Weight 3.31 lbs (1500 g)
Dimensions ø6.1 x 3 in (ø154 x 76 mm)
Temperature
Operating -40°F to 149°F (–40°C to 65°C)
Storage -49°F to 176°F (–45°C to 80°C)
Battery/Power
Battery Life Up to 15 hours
Power Source Rechargeable and built-in Lithium-ion battery, 7.2 V – 13.6 Ah
Charging Time Typically 5 hours
Voltage 9 – 28 V
Tracking Features
Satellites GPS / BDS / GLONASS / QZSS / IRNSS / SBAS / L-BAND
Channels 800
RTK H: 8mm + 1.0 ppm / V: 15mm + 1 ppm
Antenna Internal
Range Up to 10 km
Accuracy
RTK H: 8mm + 1.0 ppm / V: 15mm + 1 ppm
SBAS H: 0.3 m / V: 0.6 m
Memory
On-Board 32 GB
Communication Interface
Bluetooth BT 5.0, BLE
Cellular Global GSM/WCDMA/LTE
Wireless LAN 802.11 ac/n(HT20)/a/b/g
Internal UHF 410 – 470 MHz
USB Type-C

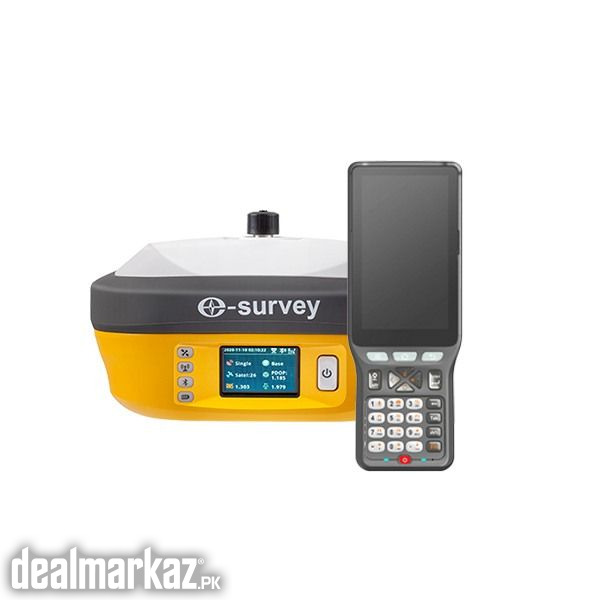

Complete with Base, Rover, Field Controller, External Radio, Tripod for Base, Fiber pole for Rover (Complete set)
