Contact for price

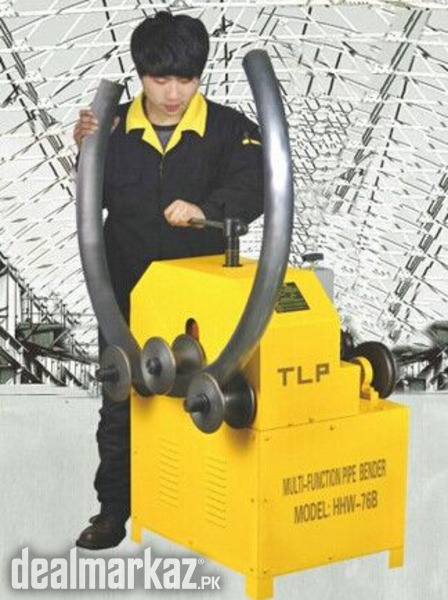

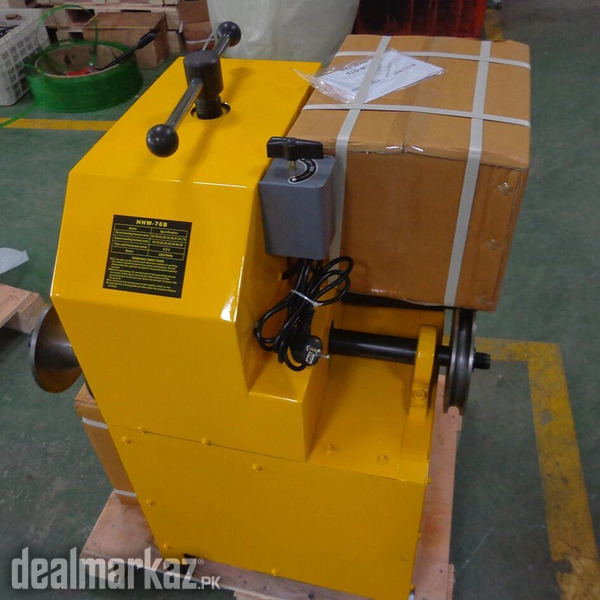

Electric Pipe Bending Machine

DESCRIPTION

Electric Pipe Bending Machine For 16-76 mm Pipes in Diameter Round and Square Pipes Bending (HHW-76B)

Featuring:

1. Bend large diameter into full circle or arc easily .

These two model are very suitable for steel pipe of greenhouse bending.
It can bend SS thick pipe ,thick square pipe and soft steel pipe .
Adjust shafts by hand for two main shafts and one driven shaft .

2. If you want to bend pipes into a circular or arc shape ,the diameter of the circle or arc should be more than twenty times of the pipe diameter .
We can supply bending dies in other specifications according to your requirements.

3. Dies are cast with special steel ,very long usage life.

We will put machine and dies into one plywood case .

Square dies and round dies are available.

Specifications

Model: HHW-76B

Pipe wall thickness :0.5-2 mm

Standard round dies:16,19,22,25,32,38,51,63,76 mm

Standard square dies:16,19,22,25,32,38,40,50 mm

Motor: 1500W
