Rs. 145,000

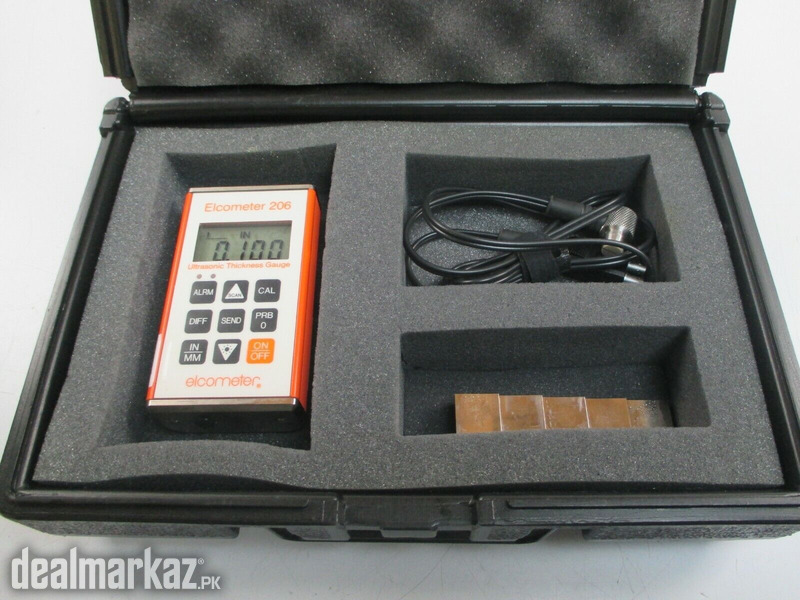

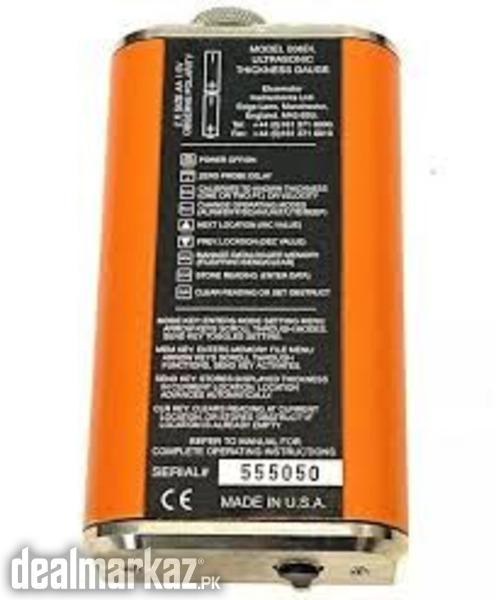

Elcometer (USA) 206 DL Ultrasonic Thickness Gauge (Used)

DESCRIPTION

The Elcometer 206DL is hand-held ultrasonic thickness gauge that allow you to make reliable thickness measurements or scan a length of material for defects, or for the thinnest point.

This gauge comes with 3 calibration options: single point, 2 point and speed of sound selection - allowing accurate measurements on a wide range of materials. Compatible with a wide range of measurement transducers, this ultrasonic thickness gauge is available with or without memory and all come with a back light for measuring in darkened environments. Transducers are supplied separately.

Technical Specification
Scan Mode : YES
Differential Mode: YES
Alarm Mode: YES
Data Output (Immediate): YES
Data Logging: 1000 readings
Maximum Measurement Range 0.63 - 500mm (0.025 - 20”), dependent on transducer and material
Velocity Range 1250 - 10000m/s (0.0492 - 0.3930 in/µs)
Accuracy ±0.1mm (0.004”), dependent on material and conditions
Resolution 0.01mm (0.001”)
Units Millimeters and inches
Operating Temperature -30°C to 50°C (-20°F to 120°F)
Keypad Type Sealed Membrane
Display 114mm (4½") Digit Liquid Crystal Display with backlight
Battery Type AA 1.5V Alkaline or 1.2V NiCad cell
Battery Life 200 hours Alkaline/120 hours NiCad
