Rs. 78,000

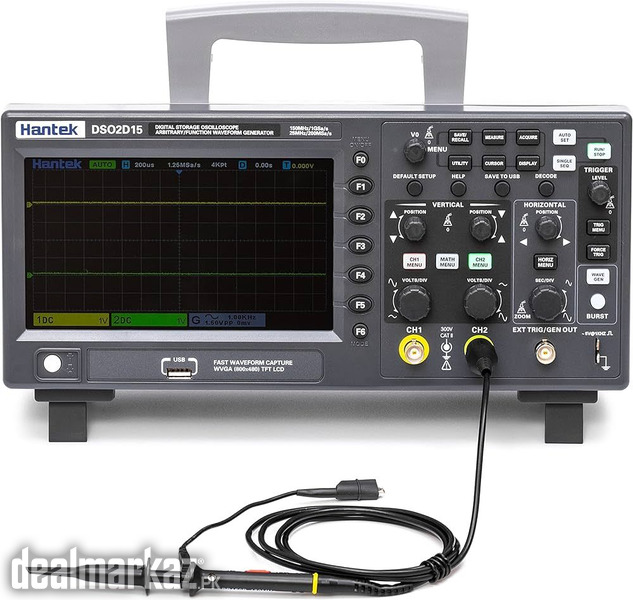

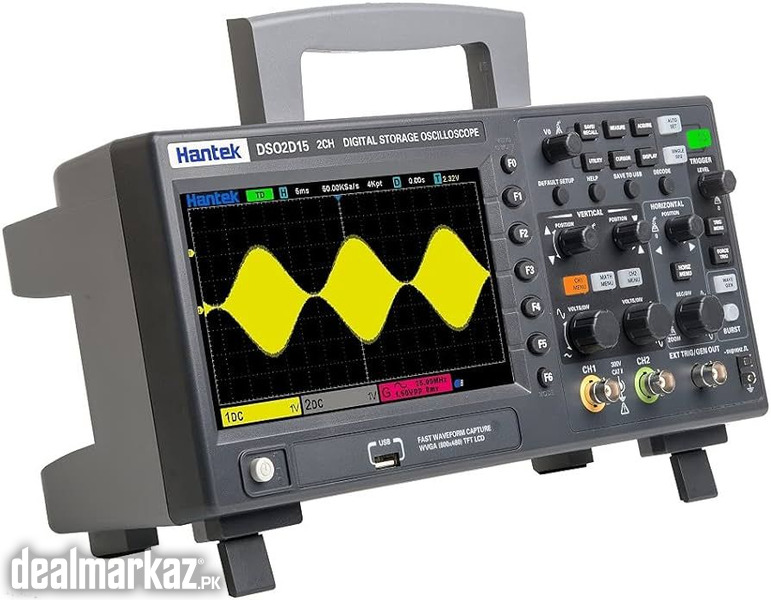

Digital Storage Oscilloscope 2 Channels 150MHz USB Oscilloscope

DESCRIPTION

Hantek DSO2D15 Signal Generation Digital Oscilloscope 2 Channels Storage USB Osciloscopio 150MHz 1GS/s

Features:

1) 2 channels, both are respectively controlled by independent knobes;
2) 150MHZ analog channel bandwidth;
3) 1 GSa/s real-time sample rate;
4) 8M memory depth;
5) Vertical range 2mV/div ~ 10V/div;
6) Built-in 1 CH 25MHz waveform generator;
7) Vertical resolution : 8bit;
8) Trigger: Edge, Pulse width, Video, Slope, Overtime, Window, Pattern, Interval, Delay, UART, LIN, CAN, SPI, IIC;
9) CAN decode and protocol analysis: RS232/UART、I2C、SPI、CAN、LIN
10) Can save as multiple data formats, such as setting, waveform, referance waveform, CSV, picture;
11) 5 bits digital voltage meter and 6 bits hardware frequency indicator function;
12) 32 kinds of auto measurements with statistics, real-time statistics of maxmum, minimum, standrad deviation and etc.;
13) 2 sets of digital voltmeter;
14) Support threshold testing, free measurements within the screen;
15) Abundant SCPI remote command control;
16) Many external interface: USB Host/Device.

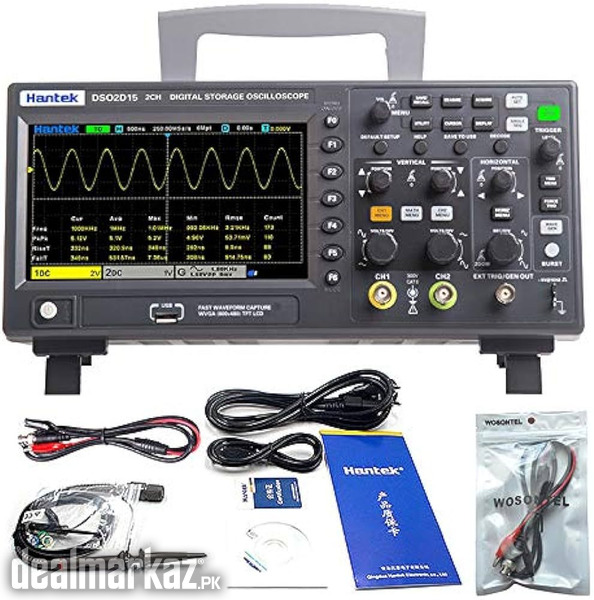

Packge included:

1 x Oscilloscope

1 x Probe

1 x USB Cable

1 x Power line

2 x BNC to alligator clip test lead
