Rs. 48,000

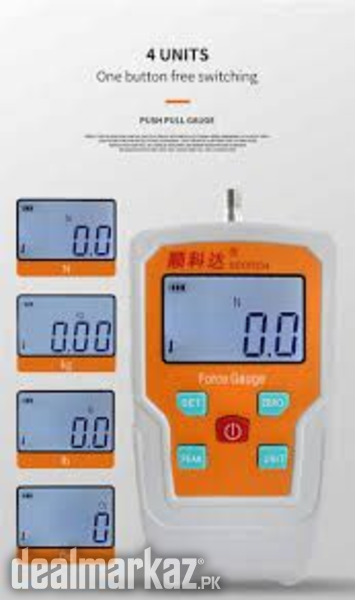

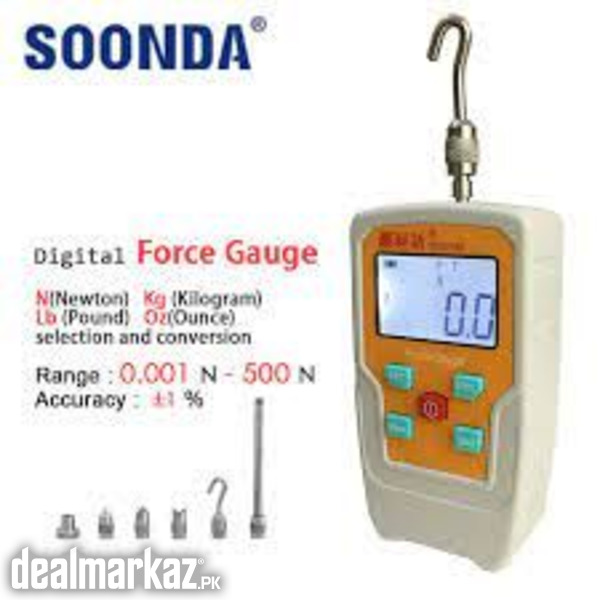

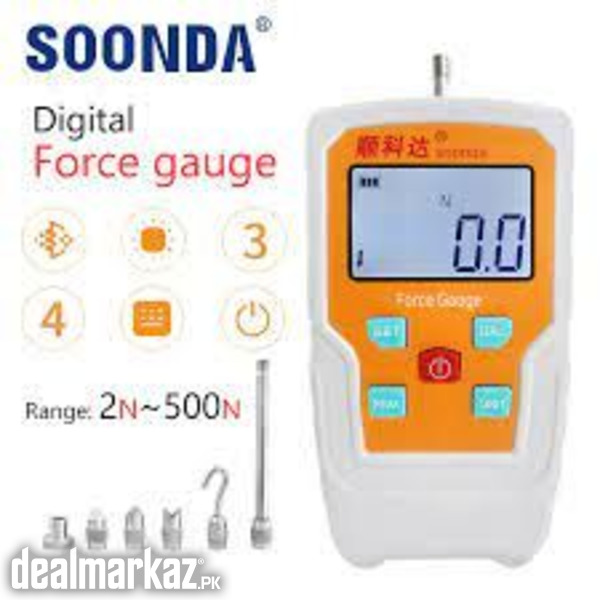

Digital Force Gauge Force Pressure Gauge Spring Dynamometer Pull gauge

DESCRIPTION

Digital High Precision Force Gauge Meter Push Pull Pressure Spring Dynamometer Testing Machine Tester Range 2-500N

Dynamometer

Sensor structure ：Inner sensor
Max Load: 500N
Accuracy：±1％
Power ： 2 AAA batteries 1.5V
Working temperature ：5℃～35℃
Transport temperature ：-10℃～60℃
Relative humidity ：15％～80％RH
Working conditions ：No vibration source around and no corrosive environment.
Dimensions ：124*60*31(mm)
Net weight ：400g

Pull Push Gauge

1. Real-time mode
Turn on the measurement interface, the system defaults to real-time measurement mode, and no mode is displayed on the screen.
In this mode, the displayed measured value will change along with the load.

2. Peak mode
Press the "PEAK" key, and the word "P" displayed on the screen is the peak mode. In this mode, the displayed measurement value is the maximum value. (When measuring again, if the measured value is lower than the previous maximum value, the displayed measured value will not change;
if the measured value is higher than the previous maximum value, the displayed measured value will update and change.)

3. First peak mode
Press the "PEAK" key, and the words "P" and "T" are displayed on the screen at the same time is the first peak mode. In this mode, the instrument only displays the first peak value measured in a period of time, and the measured value will not be displayed again.
If there is a change, press the "ZERO" key to clear it before testing again.
