Contact for price

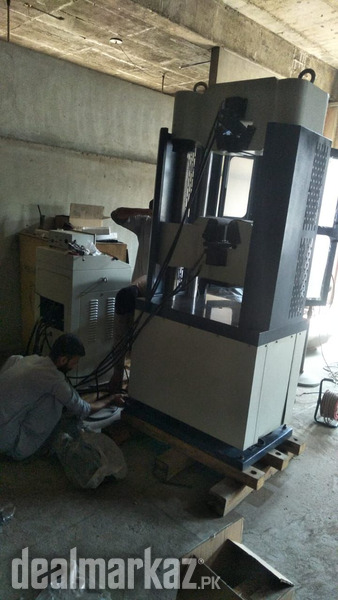

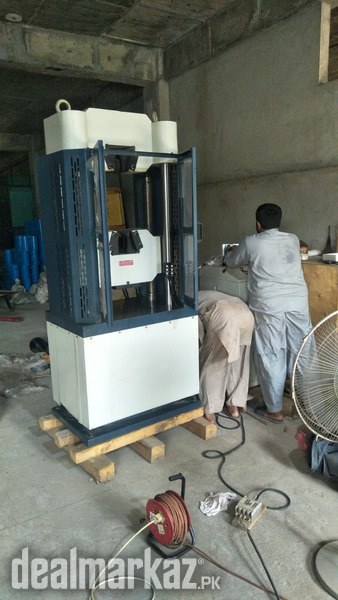

Digital Display Univesal Testing Machine (WES-1000B)

DESCRIPTION

Max. test force 1000 KN

Measuring range 4%-100%F.S.

Measuring relative error (no higher than) ±1%

Max. distance between tensile jaws 700mm

Width of flat plate specimen ≤80mm

Flat specimen holding thickness 0-40mm

Diameter of round specimen 20-60mm

Clip diameter of round specimen with shoulder 24, 30, 40mm

Specification to rib and ribbed round specimen M16

Distance between bending support rollers 60-700mm

Size of shearing specimen 20mm

Tensile space between two columns 502mm

Compression space between two pole supports columns 502mm

Piston stroke 200mm

Oil pump motor power 2.2kW

Main frame dimension 880×580×2260mm

Oil source cabinet dimension 660×640×1030mm
