Rs. 1,950,000

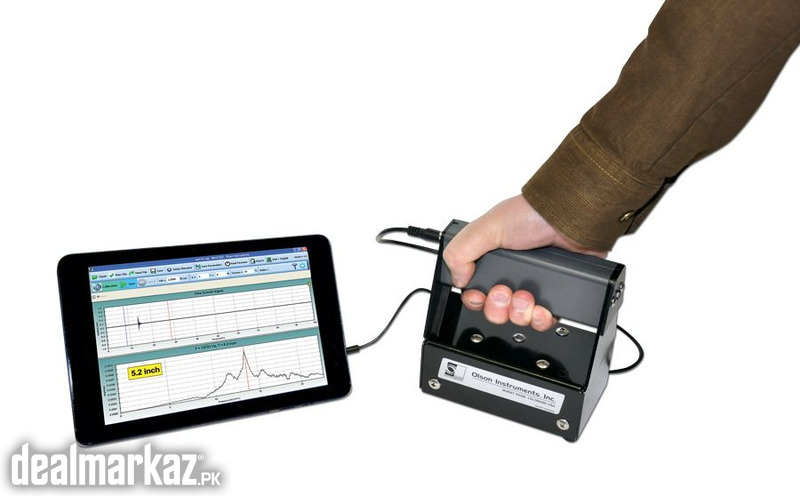

Concrete Thickness Gauge

DESCRIPTION

OLSON INSTRUMENTS (Made in USA) Portable Concrete Thickness Gauge for verifying Concrete slab thickness and integrity (No Coring, No Drilling, No Excavating)

Meets ASTM Standard C1383

Requires no special knowledge or training — connect the Concrete Thickness Gauge to your laptop or tablet* and start testing with Olson's WinCTG2 software. For greater accuracy, simply calibrate the CTG-2 by testing a point of known concrete thickness to obtain the concrete velocity for that job.

Application
Elevated Slabs (i.e. Bridge Decks, Parking Garages)
Slabs on Grade (i.e. Roads, Runways & Floors)
Walls & Precast Panels
Ceilings
Tunnel Linings & Concrete Pipe
Columns & Beams
Foundations (thicknesses up to 6 feet)

Specification

Thickness Range: 3.2" to 20" (81 mm to 50.8 cm) in standard mode
20'' to 6' (50.8cm to 1.8m) in thick mode

Accuracy: ± 2% when calibrated on a known thickness

Data Collection: Works with most Windows 7-10 devices

Frequency Resolution: 10Hz

Sampling Rate: 45,454 samples/second

Numbers of Samples Acquired per Test : 4,545

Maximum Nyquist Frequency: 22,700 Hz

Weight ❙ 5 lbs (2.3 kg)

Cable Length for Test Head: 3 ft (91 cm)

Software Features: Automatic Thickness Picking, Manual Thickness Picking
Concrete Velocity Calibration ,Time & Spectral Data: Displays for Data QA
Report Capability : Use X and Y coordinates to set up a test grid, Generate a thickness summary table exported to most spreadsheets in comma separated format

Power CR123A 3V long life lithium batteries

Features

Ruggedized, hand-held test head with integrated displacement
transducer and solenoid impactor
No coupling agents required for use of test head on concrete
Works on cured, hardened concrete of an elevated deck or on grade
Works through paint, epoxy, and most types of bonded ceramic tile
Switch between English (inches) or Metric (millimeters) units with the
click of a button
Easy velocity calibration at known thickness location, or use Olson’s
default parameters
Thickness data table can be imported into most spreadsheet programs
Save results for later review
