concrete paver tiles and concrete blocks making plant automatic

DESCRIPTION

Automatic KM-15 Double Trolley fly ash bricks, concrete Hollow Blocks, and Tuff Tiles making machinery
Model KM-15 Automatic fly ash bricks, concrete bricks, cement bricks, Hollow Blocks, Paver Tiles, Tuff Tiles, Bricks, & concrete Solid Blocks Making Machine.

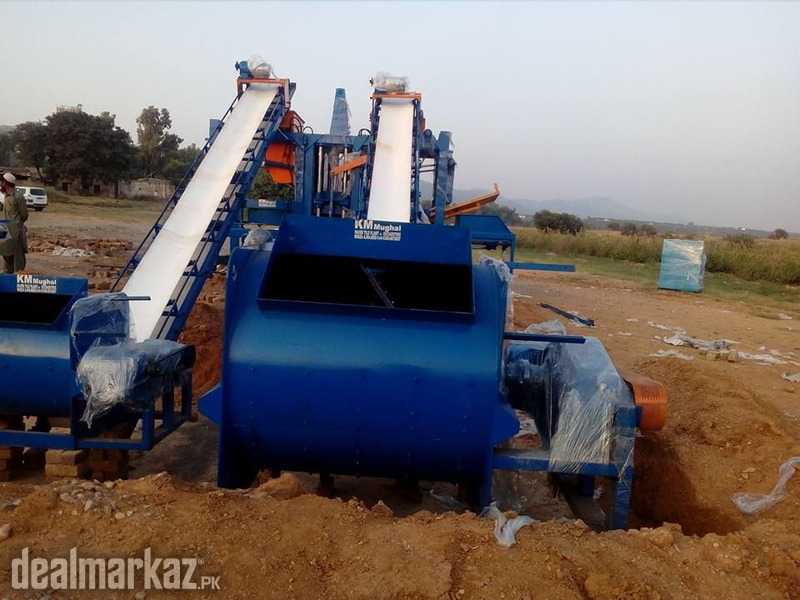

KM-15 Double Layer is a large fly ash bricks concrete block machine that can give production of concrete rectangle tile, hollow block & solid blocks, paver’s stone, and other concrete materials for the construction of roads and buildings.
The machine consists of two parts: the main machine with a primary filling bucket for aggregate raw-material of concrete, sand, and crush mix, however, the one is a color mix machine with another filling bucket for a fine surface layer on top of the paver tiles or solid blocks. With a color mix machine, a variety of products with a beautiful colored face layer can be produced.
Machine Mainly Included;
Two hopper system: (One For Aggregate Concrete Raw-Material & Other for topping color)Two Buckets Trolley (One For Aggregate Concrete Raw-Material & Other for topping color)Mixer machine with motor and gears 15hp for Aggregate Concrete Raw-Material mixing.Mixer Machine with motor & gear 7.5hp for color mixing. Two Vibrator Motors 15HP with table & stands to vibrator the mold for strength. Two Conveyor Belts 2HP (One For Aggregate Concrete Raw-Material & Other for topping color) and One Electric panel with variable controls.Chain conveyor 20 feet in length for auto pallets with finished product output.Hydraulic unit with tank and motor gear of 20hp. ( without hydraulic oil)Stripping synchronization by means of four pillars (compaction part, mold) and Hydraulic Pressure adjustment valve for compaction.

Concrete solid blocks are similar to hollow blocks in composition and production process, but they are solid throughout without any hollow core. Solid concrete blocks are typically used for load-bearing walls and other heavy-duty applications in construction.

The production process for concrete solid blocks involves using a concrete block-making machine to mold concrete into the desired shape and size, and then curing and hardening the blocks to increase their strength and durability. The machine may use various types of raw materials such as cement, sand, aggregates, and water to produce high-quality blocks that meet the required standards.

Concrete solid blocks making plants are similar to hollow blocks making plants in terms of their components and features, but they may be designed with certain modifications to suit the specific requirements of solid block production. For example, the machine may be equipped with a heavier-duty mold or block-forming equipment to handle the increased weight and density of the solid blocks.

The production capacity of a concrete solid blocks-making plant can vary depending on the size and model of the machine, but it typically ranges from several hundred to several thousand blocks per day. Efficiency and reliability are also critical factors in the performance of a solid blocks-making plant, with the machine designed for easy operation, maintenance, and cleaning to minimize downtime and maximize productivity.

Main Karachi Super Highway, Bahria Town, Karachi, Sindh, Pakistan
