Blackmagic Design DeckLink Mini Recorder video capture card

DESCRIPTION

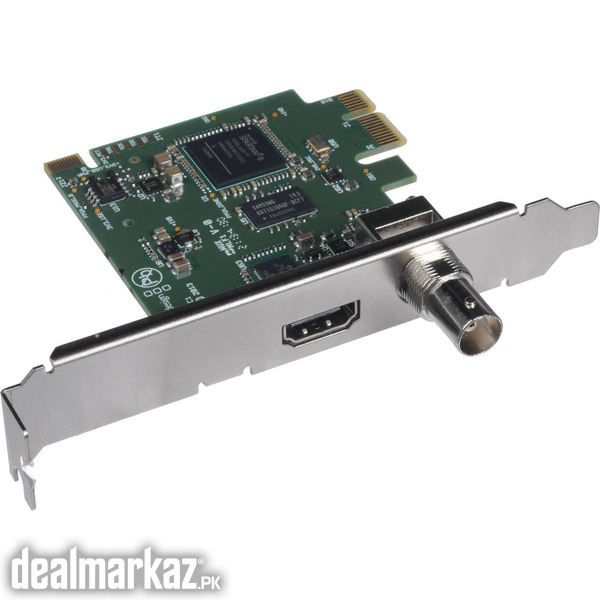

The Blackmagic Design DeckLink Mini Recorder is a PCIe slot capture card with both SDI and HDMI inputs for capturing uncompressed 10-bit video from a camera directly into your computer.

Key Features
1-Lane PCIe Slot Capture Card
SDI and HDMI Inputs
Inputs Uncompressed 10-Bit Video
4:2:2 Video Sampling
16 Ch Audio Embedded in HD SDI
8 Ch Audio Embedded in SD SDI
8 Ch Audio Embedded in SD and HD HDMI
OS X, Windows and Linux Compatible

Blackmagic Design DeckLink Mini Recorder Overview
The Blackmagic Design DeckLink Mini Recorder is a PCIe slot capture card with both SDI and HDMI inputs for capturing uncompressed 10-bit video from a camera directly into your computer. You’ll be able to ingest footage as the camera’s recording live or from a playback of the camera’s recording. The inputs are active, so once you plug a cable into them, they’ll begin functioning. This card automatically switches between SD and HD, so it’ll be able to handle all common video formats. The point of ingesting through a capture card is to bypass unnecessary compressions and hence data loss. The card performs just one compression, upon delivery to your computer, where your footage gets encoded into an edit-ready codec of your choice.

Inputs
SDI 10-bit SD/HD switchable video with 16 ch HD / 8 ch SD embedded audio
HDMI type A video with 8 ch audio embedded in SD and HD
1-Lane DeckLink Mini Recorder PCI Express Card
The Mini Monitor is a 1-lane PCI Express card and is compatible with 4, 8 and 16 lane PCI Express slots on Mac OS X, Windows, and Linux. The only Mac capable of accepting the card is a Mac Pro as other Macs can’t be opened to enable installation. The card features two PCIe shields for both full height and low profile slots.

Codecs Supported
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 (HQ), Apple ProRes 422, Apple ProRes (LT), Apple ProRes 422 (Proxy), Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2

SD Format Support 625/25 PAL, 525/29.97 NTSC
HD Format Support 720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080i59.94 and 1080i60
SDI Compliance SMPTE 259M and 292M
SDI Metadata Support VITC read for 3:2 pulldown removal. VANC capture and playback using up to 3 lines of video in file. HD RP188 and closed captioning.
Audio Sampling Television standard sample rate of 48 kHz and 24 bit
Video Sampling 4:2:2
Color Precision 10-bit
Color Space REC 601, REC 709
HDMI Configuration HDMI automatically configures to connected display
HDMI Resolution Pixel for pixel HD resolution input to connected device
HDMI Color Precision 10-bit
Multiple Rate Support SDI and HDMI are switchable between SD and HD
Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Colorspace Conversion Hardware based real time
HD Up Conversion Software based up conversion during video playback
Real Time Effects Apple Final Cut Pro internal effects
Adobe Premiere Pro Mercury Playback Engine effects
Avid Media Composer 6 internal effects
Operating System Requirements Mac OS X 10.10 Yosemite
Mac OS X 10.11 El Capitan or later
Windows 7, 8.1, and 10, all 64-bit
Linux
