Rs. 8,000

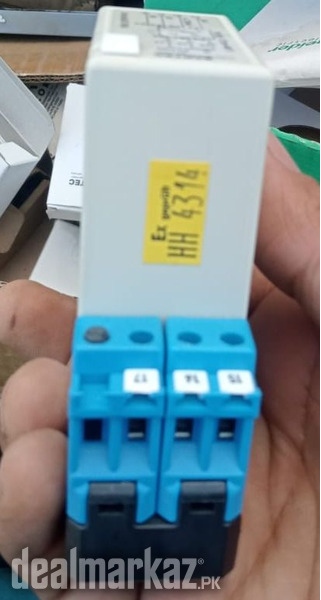

Bartec 07-7311-93t49350 Measuring Transducer for Pt 100

DESCRIPTION

Technical data
Enclosure material High-quality thermoplastic
Protection class Module IP 66 EN/IEC 60529
Terminals IP 20 EN/IEC 60529
Terminals 2.5 mm2
, fine stranded
Mounting rail TH 35 x 7.5 (15) EN/IEC 60715
Terminal designation written marking labels
Ambient temperature -40 °C to +60 °C at T4
Storage temperature -40 °C to +60 °C
Weight 0.250 kg
Electrical data
Operating voltage DC 24 V -10 %, +20 %
Power consumption 1.6 W
Sensor Pt100 temperature sensor
2- or 3-wire circuits
Output Load independent current: 4 to 20 mA
Max. load: ≤ 400 Ω
Temperature range -50 °C to +100 °C
0 °C to +200 °C
0 °C to +400 °C
Accuracy ± 1 % of upper value
Function test Connect 100 Ω resistance to terminal 15 - 16
and bridge terminals 16 and 17. Apply current
between L- and terminal 31.
Note: Observe terminal assignment.
